ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Camry (1988) (TY3-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Camry (1988) (TY3-XTG4)

TY3-XTG4

Out of stock

$660.00 USD
$815.00 USD $660.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Toyota Camry (1988) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and enhanced durability. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure unparalleled performance and longevity. The inclusion of a four-pad spring-centered race disc provides optimal damping and consistent engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components offer increased rigidity and stability during operation, ensuring reliable power transfer and improved pedal feel.

This clutch kit is specifically designed to fit the 1988 Toyota Camry, providing a direct replacement for stock components. It is ideal for street and track use where high clamp loads and durability are essential. The assembly is a bolt-on upgrade that requires no additional modifications for installation, making it suitable for enthusiasts seeking a straightforward upgrade. The kit includes the pressure plate, race disc, and necessary hardware, ensuring comprehensive replacement. Perfect for high-performance street driving or competitive racing, this clutch kit enhances power handling and overall drivability for the vehicle's specific application.

Overview

ACT XT/Race Sprung 4 Pad Kit

TY3-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.3
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1988-1991 Toyota Camry
  • 1988-1989 Toyota Celica
  • 1990-1991 Lexus ES250
  • 1996-2000 Toyota RAV4

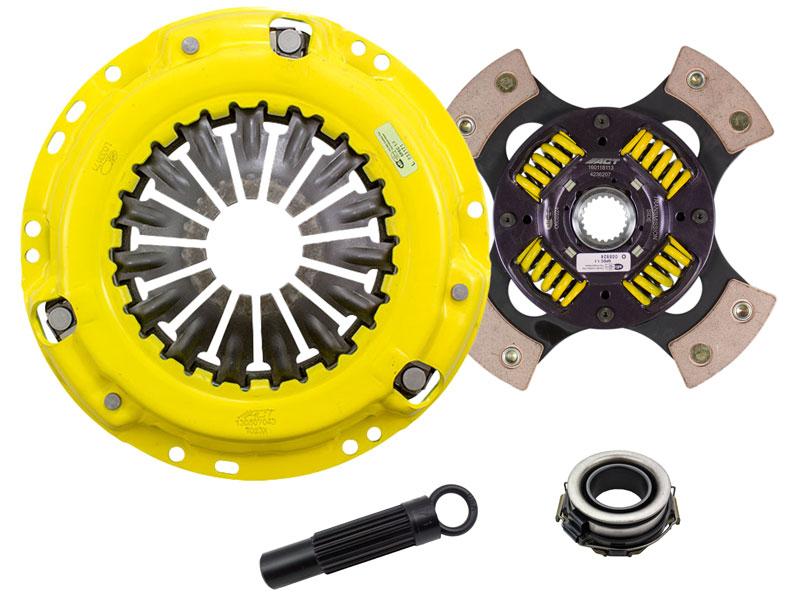

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB219)
  • Clutch Pressure Plate (T023X)

References

Warranty

  • Manufacturer 1 Year Warranty
