• ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Camry (02) (TY4-XTG4)
1 1

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Camry (02) (TY4-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Camry (02) (TY4-XTG4)

TY4-XTG4

Out of stock

$660.00 USD
$815.00 USD $660.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Toyota Camry (02) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The clutch disc incorporates a four-pad spring-centered race design, which effectively damps torsional vibrations and enhances engagement stability. Constructed with precision cover stampings, the components deliver rigidity and consistency, making this kit suitable for aggressive street or race applications.

Designed specifically for the 2002 Toyota Camry, this clutch kit is compatible with models equipped with the appropriate engine configuration. It serves as a direct replacement for stock clutch components, providing increased clamping force and improved heat resistance for high-performance driving. The kit includes a sprung 4-pad race disc, pressure plate, and necessary hardware for installation. Ideal for track use, spirited street driving, or applications requiring maximum durability, this clutch kit ensures reliable power transfer and longevity under demanding conditions.

Overview

ACT XT/Race Sprung 4 Pad Kit

TY4-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.3
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1999-2002 Toyota Solara
  • 1992-2002 Toyota Camry
  • 1992-1993 Lexus ES300

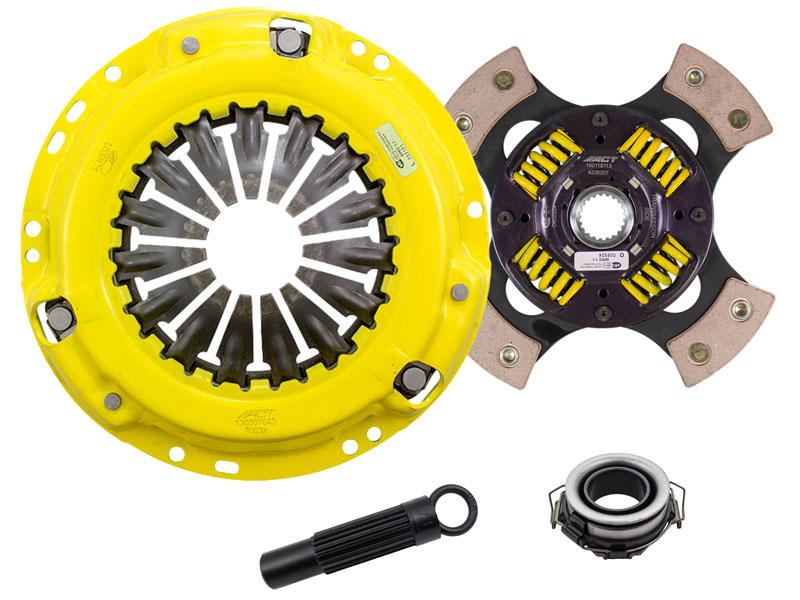

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023X)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
