• ACT Extreme Race Sprung 4 Pad Clutch Kit | Kia Sportage (95) (Z61-XTG4)
1 1

ACT Extreme Race Sprung 4 Pad Clutch Kit | Kia Sportage (95) (Z61-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Kia Sportage (95) (Z61-XTG4)

Z61-XTG4

Out of stock

$816.00 USD
$816.00 USD $816.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Kia Sportage (95) features a high-performance clutch assembly designed for demanding driving conditions. The kit includes an Xtreme pressure plate that employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. All diaphragms undergo a four-stage heat-treating process, ensuring durability and consistent performance under intense use. The pressure plate's precision cover stampings enhance rigidity and stability, while the 4-pad spring-centered race disc provides optimal engagement and damping characteristics. This combination delivers superior holding capacity and responsiveness, making it suitable for high-stress applications and spirited driving.

Designed specifically for the 1995 Kia Sportage with the Z61 chassis code, this clutch kit is intended for performance-oriented street and track use. It is a direct replacement for the stock clutch, providing increased clamping force and durability for aggressive driving and racing scenarios. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with the vehicle's specifications, this clutch kit is ideal for drivers seeking enhanced performance and longevity from their clutch system, especially in high-power or heavily modified setups.

Overview

ACT XT/Race Sprung 4 Pad Kit

Z61-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.9
  • Torque Capacity (ft/lbs.): 470
  • Torque Capacity Over OE: 1.56
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1988-1989 Mazda 323
  • 1995-2002 Kia Sportage
  • 1988-1992 Mazda MX-6
  • 1988-1992 Mazda 626
  • 1989-1992 Ford Probe

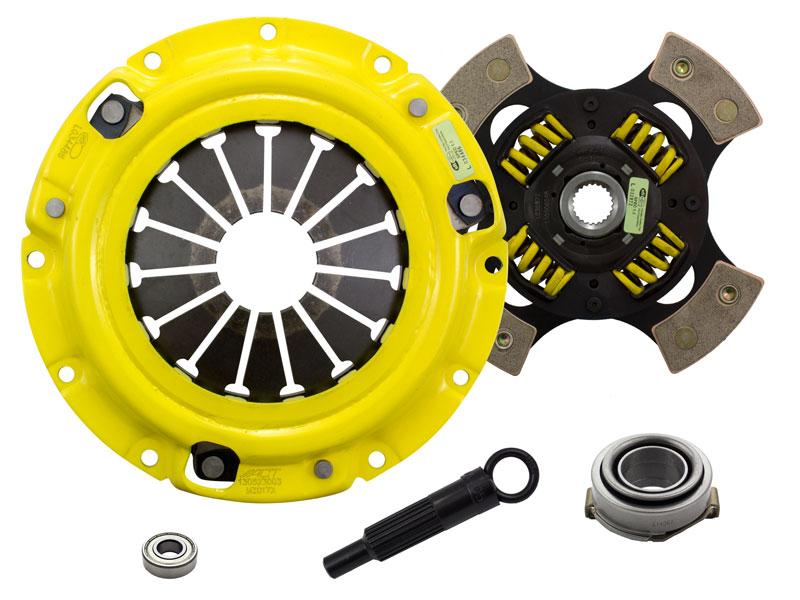

What's In The Box?

  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)
  • Clutch Friction Disc (4224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ017X)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
