• ACT Extreme Race Sprung 4 Pad Clutch Kit | Mazda 929 XT/Race (1988) (Z64-XTG4)
1 1

ACT Extreme Race Sprung 4 Pad Clutch Kit | Mazda 929 XT/Race (1988) (Z64-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Mazda 929 XT/Race (1988) (Z64-XTG4)

Z64-XTG4

In stock

$600.00 USD
$741.00 USD $600.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Mazda 929 XT/Race (1988) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and maximizes clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The included 4-pad spring-centered race disc provides optimal damping and engagement, making it suitable for racing and high-performance applications. Constructed with precision cover stampings, the clutch components deliver rigidity and reliability, ensuring consistent power transfer and pedal feel during aggressive driving.

This clutch kit is specifically designed for 1988 Mazda 929 XT models, compatible with engines and chassis configurations suited for high-performance use. It serves as a direct replacement for stock units, offering enhanced clamp load and durability for racing, track days, or spirited street driving. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included in the kit. Ideal for drivers seeking maximum performance and longevity from their clutch system, this ACT kit provides a reliable upgrade for demanding automotive applications.

Overview

ACT XT/Race Sprung 4 Pad Kit

Z64-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 16
  • Torque Capacity (ft/lbs.): 560
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1988-1992 Mazda MX-6
  • 1988-1991 Mazda 626
  • 1988-1991 Mazda 929
  • 1989-1992 Ford Probe

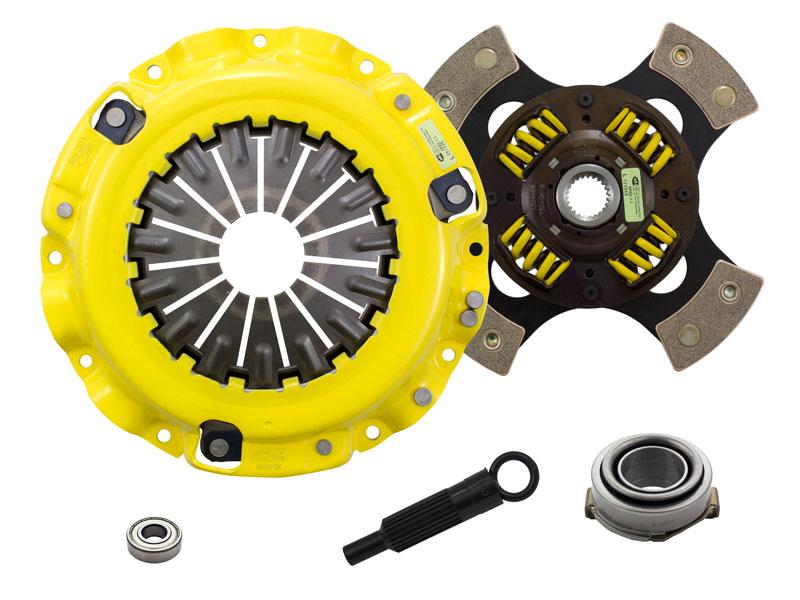

What's In The Box?

  • Clutch Friction Disc (4240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
