• ACT Extreme Race Sprung 4 Pad Clutch Kit | Mazda Protege XT/Race (01) (Z66-XTG4)
1 1

ACT Extreme Race Sprung 4 Pad Clutch Kit | Mazda Protege XT/Race (01) (Z66-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Mazda Protege XT/Race (01) (Z66-XTG4)

Z66-XTG4

In stock

$670.00 USD
$827.00 USD $670.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Mazda Protege XT (01) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit provides increased clamp load, reduced deflection, and enhanced clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The 4-pad spring-centered race disc is engineered to deliver optimal engagement and power transfer, making it suitable for racing and high-performance applications. Constructed with precision cover stampings, the clutch components offer rigidity and reliability, ensuring maximum performance during aggressive driving.

This clutch kit is specifically designed for 2001 Mazda Protege XT models, compatible with engines and chassis configurations that require a high-capacity racing clutch. It serves as a direct replacement upgrade for stock components, ideal for track use, spirited driving, or any scenario demanding increased clamping force and durability. Installation involves bolt-on replacement of existing clutch parts, with all necessary components included in the kit. Suitable for race, street, or performance driving, this clutch assembly provides the reliability and performance needed to handle high horsepower and aggressive driving styles.

Overview

ACT XT/Race Sprung 4 Pad Kit

Z66-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.7
  • Torque Capacity (ft/lbs.): 430
  • Torque Capacity Over OE: 1.29
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1993-1997 Ford Probe
  • 1993-2002 Mazda 626
  • 1993-1997 Mazda MX-6
  • 2001-2003 Mazda Protege
  • 2002-2003 Mazda Protege5

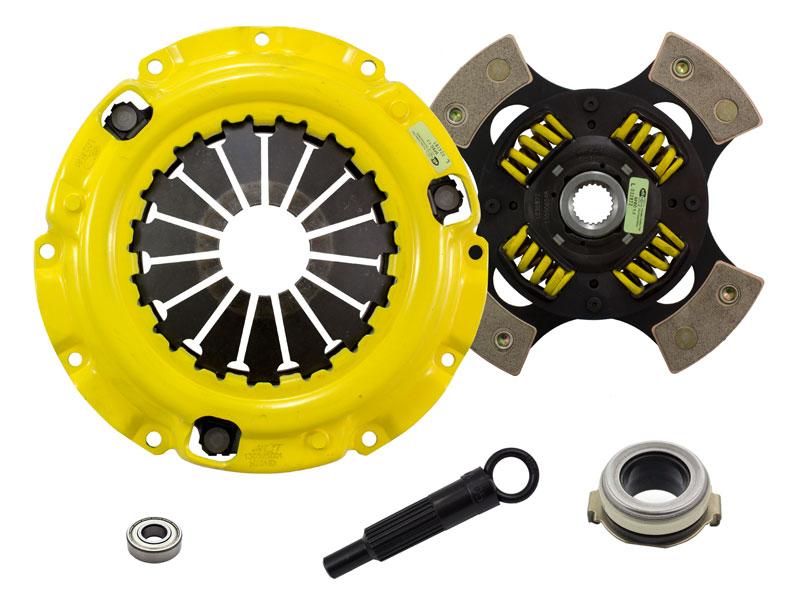

What's In The Box?

  • Clutch Friction Disc (4224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ018X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB110)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
