• ACT Extreme Race Sprung 6 Pad Clutch Kit | Mazda 3 (07-13) / Mazda 6 (06-07) (ZX5-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Mazda 3 (07-13) / Mazda 6 (06-07) (ZX5-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Mazda 3 (07-13) / Mazda 6 (06-07) (ZX5-XTG6)

ZX5-XTG6

Out of stock

$1,308.00 USD
$1,615.00 USD $1,308.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for Mazda 3 (2007-2013) and Mazda 6 (2006-2007) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and maximizes clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The kit includes a 6-pad spring-centered race disc, engineered for aggressive driving and track use, providing superior grip and responsiveness. Constructed with precision cover stampings, the clutch components deliver rigidity and reliability, making it suitable for high-stress applications.

This clutch kit is compatible with 2007-2013 Mazda 3 and 2006-2007 Mazda 6 models equipped with compatible engines and chassis configurations. It is intended for performance-oriented street and track use, offering a direct bolt-on replacement for stock components. The assembly is designed to handle increased power and torque, making it ideal for spirited driving, racing, or heavy-duty applications. Installation involves standard clutch replacement procedures, and the kit includes all necessary components for a complete upgrade. Suitable for drivers seeking enhanced clutch performance and durability in demanding driving environments.

Overview

2007-2013 Mazda 3 / 2006-2007 Mazda 6 XT/Race Sprung 6 Pad Clutch Kit by ACT

ZX5-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 38.3
  • Torque Capacity (ft/lbs.): 681
  • Torque Capacity Over OE: 129%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 9.4
  • Clutch Disc Diameter (Millimeters): 240
  • Input Shaft Diameter (inches): 1
  • Pressure Plate Type: Xtreme
  • Flywheel Type: Streetlite

Benefits

  • Moderate to heavy pedal effort
  • Aggressive engagement
  • OE to mild gear rattle
  • Moderate friction life
  • Accurately balanced
  • uses select ceramic friction materials for high heat tolerance and maximum performance
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 2007-2013 Mazda 3
  • 2006-2007 Mazda 6

What's In The Box?

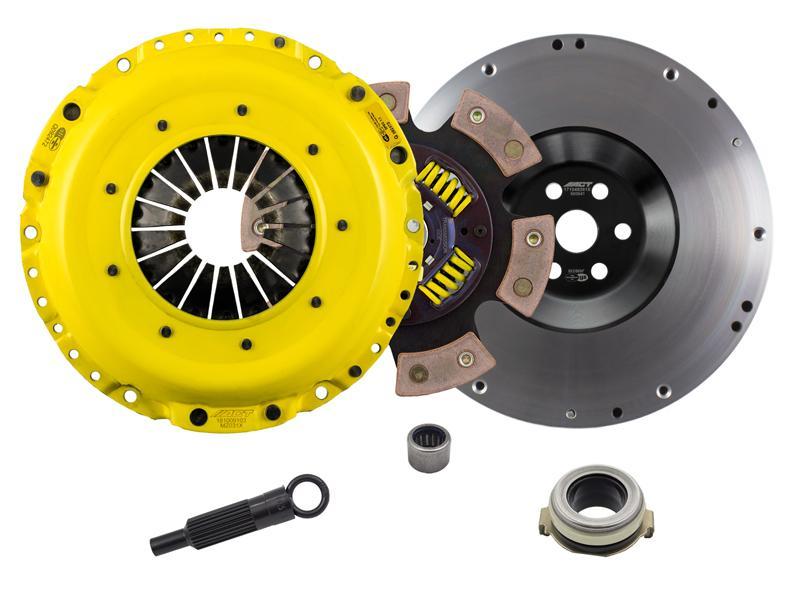

  • 1 - ACT XT/Race Sprung 6 Pad Clutch Kit

Warranty

  • ACT 1-Year Limited Warranty
View full details
