ACT Extreme Race Sprung 6 Pad Clutch Kit | Volkswagen GTI/Golf R (15-24) (VW9-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Volkswagen GTI/Golf R (15-24) (VW9-XTG6)

VW9-XTG6

In stock

$1,753.00 USD
$2,164.00 USD $1,753.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for Volkswagen GTI and Golf R (2015-2024) is a high-performance clutch system designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life, making it ideal for aggressive street and track use. The pressure plate employs an exclusive diaphragm design, undergoes a four-stage heat-treating process, and includes precision cover stampings to ensure rigidity and consistency. The 6-pad spring-centered race disc provides reliable engagement and durability, supporting high horsepower and torque applications. Constructed with quality materials, this clutch kit delivers superior performance, improved heat dissipation, and long-lasting reliability for serious enthusiasts.

Designed specifically for 2015-2024 Volkswagen GTI and Golf R models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for vehicles used in spirited street driving, track days, or competitive racing, where maximum clamping force and durability are required. The kit is a bolt-on installation, compatible with the original transmission setup, and does not require additional modifications. It includes all necessary components for a complete clutch replacement, ensuring optimal performance and engagement. This clutch kit is ideal for drivers seeking increased holding capacity and enhanced driving experience in high-performance applications.

Overview

2015-2024 Volkswagen GTI/Golf R XT/Race Sprung 6 Pad Clutch Kit by ACT

VW9-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance.

ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability.

With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Moderate-to-heavy pedal effort
  • Aggressive engagement
  • OE to mild gear rattle
  • Moderate friction life, extended by ACT's exclusive diaphragm design

Applications

  • 2015-2024 Volkswagen GTI
  • 2015-2024 Volkswagen Golf R

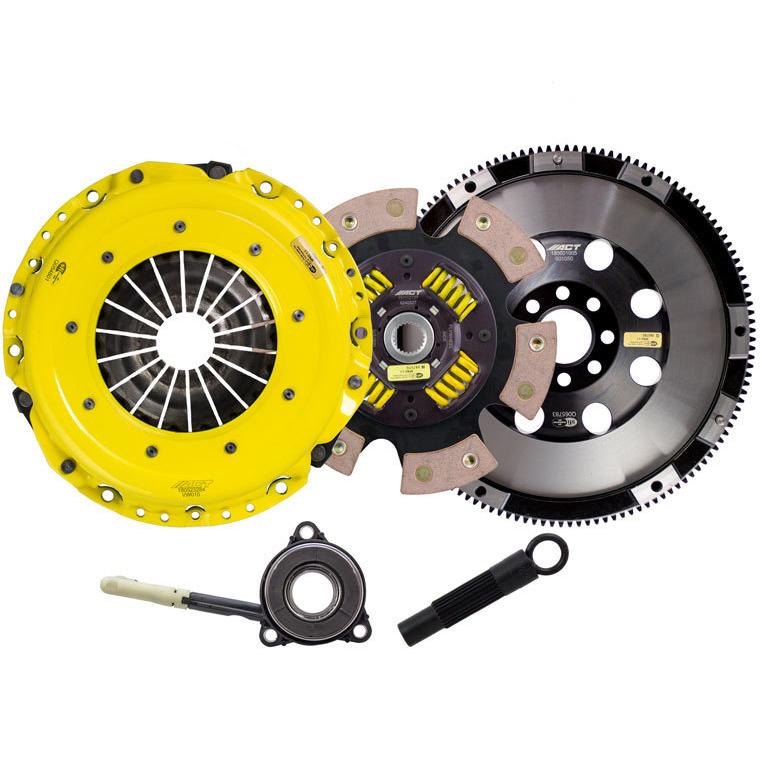

What's In The Box?

  • 1 - 6-pad Sprung Race Disc
  • 1 - Xtreme Pressure Plate
  • 1 - XACT Streetlite Flywheel
  • 1 - Alignment Tool
  • 1 - Release Bearing

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
