• ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota Corona (69-70) (TK1-XTG6)
1 1

ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota Corona (69-70) (TK1-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota Corona (69-70) (TK1-XTG6)

TK1-XTG6

In stock

$565.00 USD
$698.00 USD $565.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit for the Toyota Corona (1969-1970) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The inclusion of a 6-pad spring-centered race disc provides optimal damping and engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components offer enhanced rigidity and reliability, ensuring they can withstand high-stress environments.

This clutch kit is specifically designed for 1969-1970 Toyota Corona models, compatible with engines and chassis configurations from that era. It serves as a direct replacement for stock clutch components, providing improved performance for street and track use. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Ideal for enthusiasts seeking increased holding capacity and durability, this clutch kit enhances driving confidence during spirited driving, racing, or heavy-duty applications. It is suitable for use in vehicles requiring a high-performance clutch upgrade to handle increased power and demanding driving conditions.

Overview

ACT XT/Race Sprung 6 Pad Kit

TK1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.4
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1969-1970 Toyota Corona

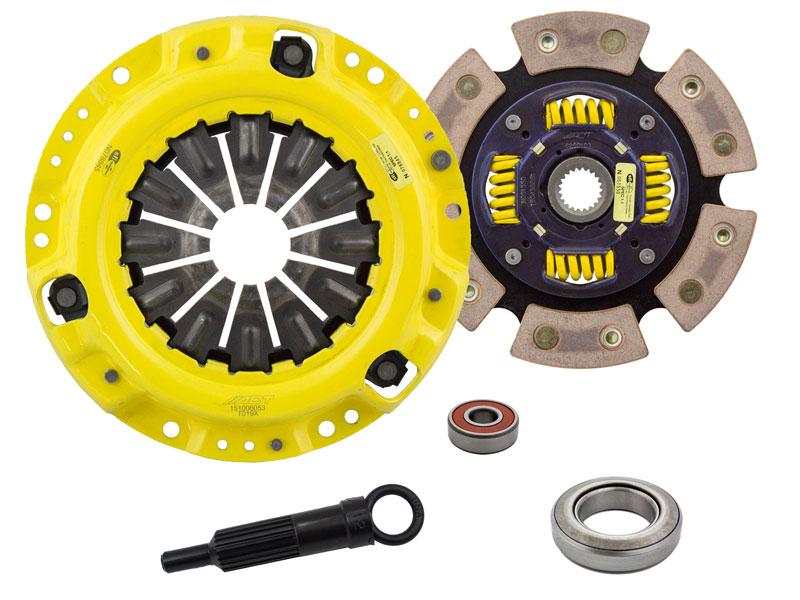

What's In The Box?

  • Clutch Friction Disc (6200103)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB010)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
