• ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Corona XT/Race (70-71) (TK2-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Corona XT/Race (70-71) (TK2-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Corona XT/Race (70-71) (TK2-XTG6)

TK2-XTG6

In stock

$569.00 USD
$703.00 USD $569.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Toyota Corona XT/Race (70-71) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and extended clutch life. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The inclusion of a 6-pad spring-centered race disc with spring-center construction enhances damping and engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components deliver rigidity and reliability, optimizing power transfer and pedal feel.

This clutch kit is specifically designed for 1970-1971 Toyota Corona XT models, offering a direct replacement for stock components. It is ideal for street and race use, providing the durability and performance needed for high-stress driving scenarios. The assembly is a bolt-on upgrade that requires no additional modifications for installation. The kit includes the pressure plate, race disc, and necessary hardware, ensuring a complete setup for maximum performance. Suitable for engines with increased power output, this clutch enhances engagement and longevity, making it a preferred choice for enthusiasts seeking reliable, high-performance clutch solutions.

Overview

ACT XT/Race Sprung 6 Pad Kit

TK2-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.3
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1970-1971 Toyota Corona

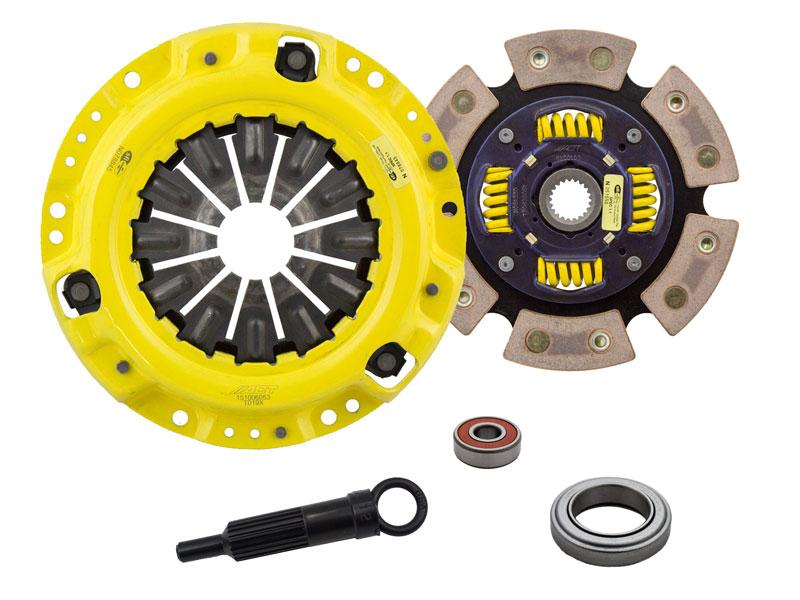

What's In The Box?

  • Clutch Friction Disc (6200103)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB005)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
