ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota Corolla XT/Race (80-87) (TL1-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota Corolla XT/Race (80-87) (TL1-XTG6)

TL1-XTG6

In stock

$700.00 USD
$700.00 USD $700.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load and reduces deflection, resulting in improved power transfer and clutch longevity. The pressure plate utilizes an exclusive diaphragm design that undergoes a four-stage heat-treating process, ensuring durability and consistent performance under intense use. The 6-pad spring-centered race disc is engineered to provide optimal damping and engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components deliver rigidity and reliability, supporting high torque loads and extended service life.

This clutch kit is compatible with Toyota Corolla XT/Race models from 1980 to 1987, specifically tailored for vehicles requiring a performance upgrade. It is a direct replacement for stock clutch components, designed for street and track use where maximum engagement and durability are essential. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade. Ideal for enthusiasts seeking improved clutch performance in high-stress driving scenarios, this ACT clutch kit ensures reliable operation and enhanced driving experience on both the street and race track.

Overview

ACT XT/Race Sprung 6 Pad Kit

TL1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.5
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1980-1987 Toyota Corolla

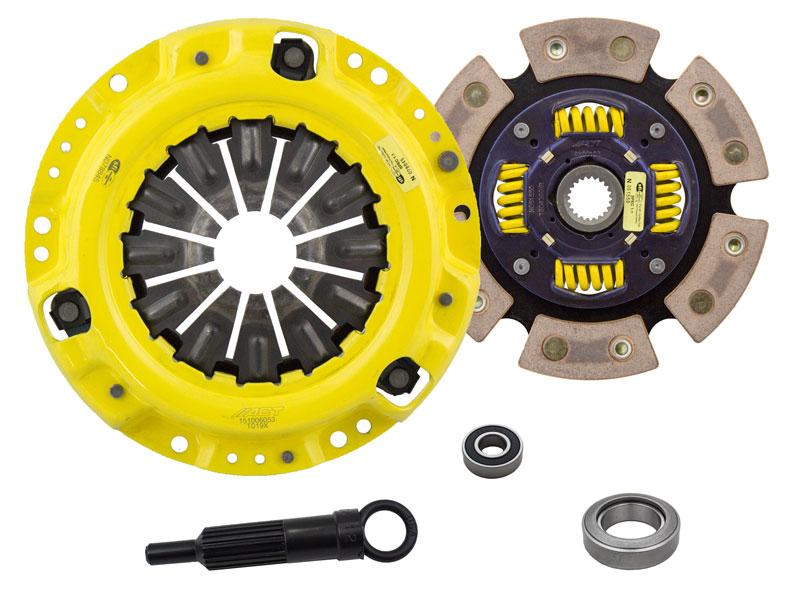

What's In The Box?

  • Clutch Friction Disc (6200103)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1001)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
