• ACT Extreme Race Sprung 6 Pad Clutch Kit | Ford Ranger (83-84) (FC2-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Ford Ranger (83-84) (FC2-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Ford Ranger (83-84) (FC2-XTG6)

FC2-XTG6

In stock

$610.00 USD
$753.00 USD $610.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Ford Ranger (83-84) is a high-performance clutch assembly designed to meet the demands of aggressive driving and racing applications. Featuring an Xtreme pressure plate, this kit utilizes an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch durability. The pressure plate undergoes a four-stage heat-treating process to ensure maximum performance and longevity, while precision cover stampings provide added rigidity and consistency. The included 6-pad spring-centered race disc is engineered with spring-center construction to effectively dampen torsional vibrations, resulting in improved power transfer and reduced clutch chatter during high-stress operation.

This clutch kit is specifically engineered for 1983-1984 Ford Ranger models, offering a direct replacement for stock components in demanding racing or performance street setups. It is suitable for vehicles with modified or stock engines requiring increased clamping force and durability. The assembly is a bolt-on upgrade that does not require extensive modifications, making it ideal for track use, high-performance street driving, or racing environments. The kit includes all necessary components for installation, providing a comprehensive solution for drivers seeking maximum clutch performance and reliability in their Ford Ranger.

Overview

ACT XT/Race Sprung 6 Pad Kit

FC2-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 15
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224

Applications

  • 1983-1984 Ford Ranger

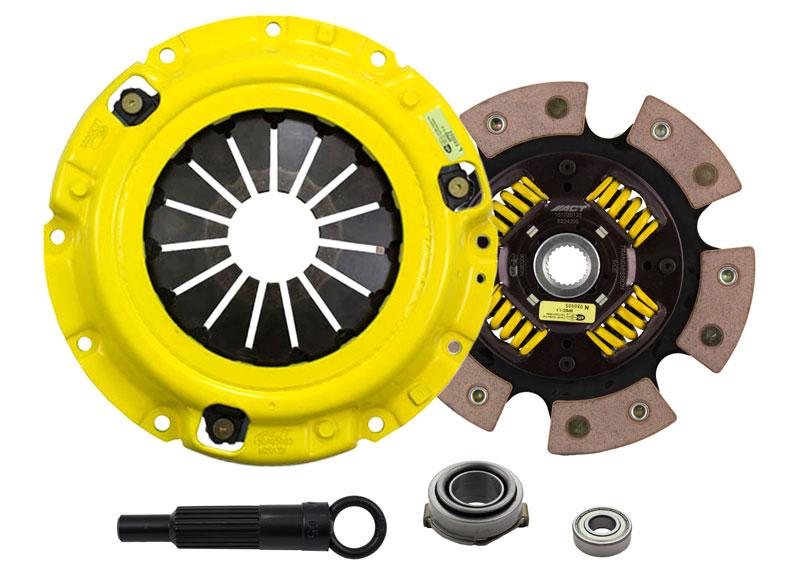

What's In The Box?

  • Clutch Friction Disc (6224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ013X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
