ACT XT/Race Sprung 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-XTG6)

FM4-XTG6

Out of stock

$646.00 USD
$797.00 USD $646.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

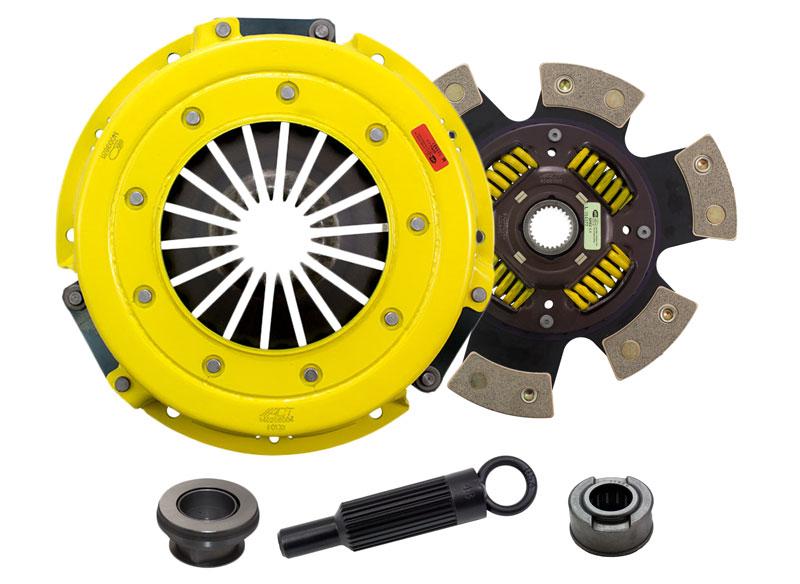

The ACT XT/Race Sprung 6 Pad Clutch Kit FM4-XTG6 is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The inclusion of a 6-pad spring-centered race disc provides optimal damping and engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components offer enhanced rigidity and reliability, ensuring consistent power transfer under high-stress conditions.

This clutch kit is compatible with Ford Mustangs from 1986 to 1995, specifically tailored for models requiring a high-performance upgrade. It is a direct replacement for stock clutch components, designed to handle increased power and torque for street or track use. Installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included for a straightforward upgrade. Ideal for racing, spirited street driving, or applications demanding maximum durability, this ACT clutch kit provides a reliable solution for performance enthusiasts seeking improved engagement and longevity.

Overview

ACT XT/Race Sprung 6 Pad Kit

FM4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 23.2
  • Torque Capacity (ft/lbs.): 735
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266
  • Disc Material: Ceramic
  • Input Spline Quantity: 26
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1986-1995 Ford Mustang LX, GT, & SVT Cobra

What's In The Box?

  • Clutch Friction Disc (6266320)
  • Clutch Alignment Tool (ATF048)
  • Clutch Pressure Plate (F013X)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
