ACT XT/Race Sprung 6 Pad Clutch Kit | Mazda B2600 (87-89) (ZT2-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Mazda B2600 (87-89) (ZT2-XTG6)

ZT2-XTG6

In stock

$631.00 USD
$779.00 USD $631.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit for the Mazda B2600 (87-89) is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The kit includes a 6-pad spring-centered race disc with spring-center construction, providing effective damping and smooth engagement. Constructed with precision cover stampings, this clutch kit offers enhanced rigidity and reliability, making it suitable for aggressive street or race applications.

Designed specifically for 1987 to 1989 Mazda B2600 models, this clutch kit is a direct replacement for stock components, offering improved holding capacity and durability. It is ideal for high-performance street driving, track use, or off-road applications where increased clamping force and longevity are required. Installation involves standard bolt-on procedures, and the kit typically includes the pressure plate, clutch disc, and necessary hardware. Compatible with vehicles equipped with compatible manual transmissions, this clutch kit provides a reliable upgrade for drivers seeking increased performance and clutch life in demanding environments.

Overview

ACT XT/Race Sprung 6 Pad Kit

ZT2-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 16.5
  • Torque Capacity (ft/lbs.): 560
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1989 Mazda B2600

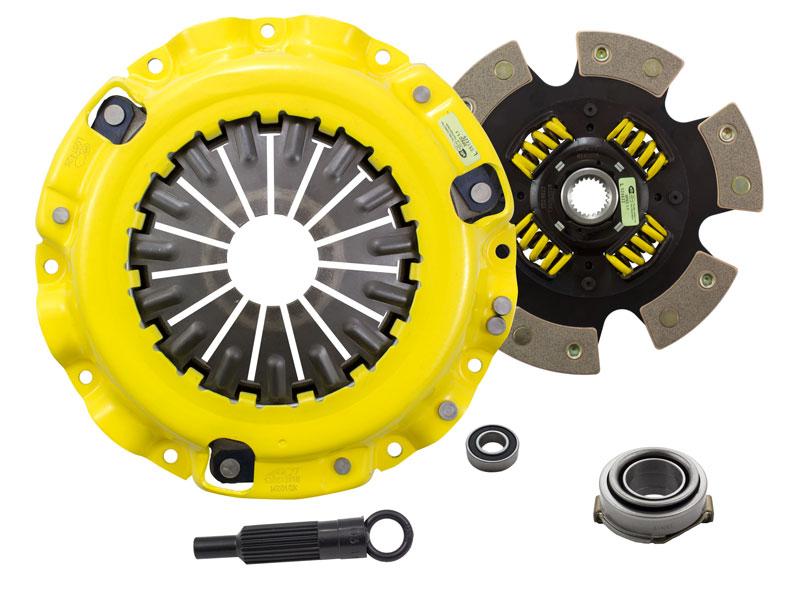

What's In The Box?

  • Clutch Friction Disc (6240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
