• ACT XT/Race Sprung 6 Pad Clutch Kit | Honda Civic (88) (HC7-XTG6)
1 1

ACT XT/Race Sprung 6 Pad Clutch Kit | Honda Civic (88) (HC7-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Honda Civic (88) (HC7-XTG6)

HC7-XTG6

In stock

$583.00 USD
$720.00 USD $583.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit for Honda Civic (88) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that enhances clamp load, reduces deflection, and extends clutch life, making it suitable for aggressive street and race applications. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The clutch disc incorporates a 6-pad spring-centered race design, providing effective damping and smooth engagement. Constructed with precision cover stampings, the components deliver rigidity and reliability under high-stress conditions, making this kit ideal for drivers seeking maximum performance and longevity.

This clutch kit is compatible with Honda Civics from 1988, specifically designed to fit models with the HC7 chassis code. It is a direct replacement upgrade for stock clutch systems, suitable for both street and track use. The assembly includes a sprung 6-pad race disc, a high-capacity pressure plate, and all necessary components for installation. The kit is engineered to handle increased power and torque, making it an excellent choice for performance enthusiasts and racers. Proper installation ensures optimal engagement and durability, providing a reliable upgrade for high-performance driving scenarios.

Overview

ACT XT/Race Sprung 6 Pad Kit

HC7-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic

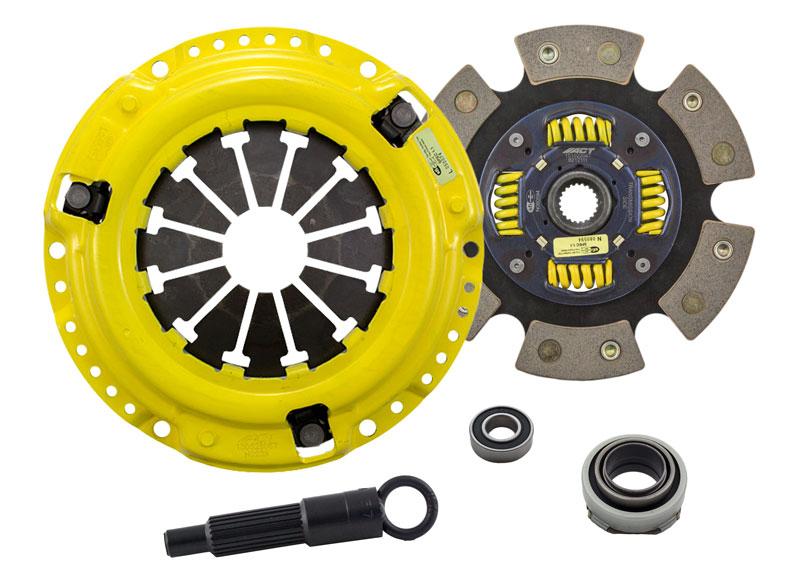

What's In The Box?

  • Clutch Friction Disc (6212111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
