ACT Extreme Race Sprung 6 Pad Clutch Kit | Honda Civic (89-91) (HW4-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Honda Civic (89-91) (HW4-XTG6)

HW4-XTG6

In stock

$583.00 USD
$720.00 USD $583.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for Honda Civic (1989-1991) is a high-performance clutch system designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under extreme conditions. The precision cover stampings contribute to the rigidity and reliability of the assembly, making it suitable for aggressive street or race applications. The included 6-pad spring-centered race disc provides optimal damping and engagement characteristics, enhancing power transfer and pedal feel.

This clutch kit is specifically engineered for Honda Civics from 1989 to 1991, compatible with models equipped with the appropriate engine configurations. It serves as a direct replacement or upgrade for stock clutch components, offering increased clamping force and durability for high-performance driving. The kit is ideal for track use, spirited street driving, or any application requiring a robust clutch system. Installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included for a complete upgrade. Designed to withstand demanding conditions, this clutch kit ensures reliable performance and long-lasting operation.

Overview

ACT XT/Race Sprung 6 Pad Kit

HW4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda Civic

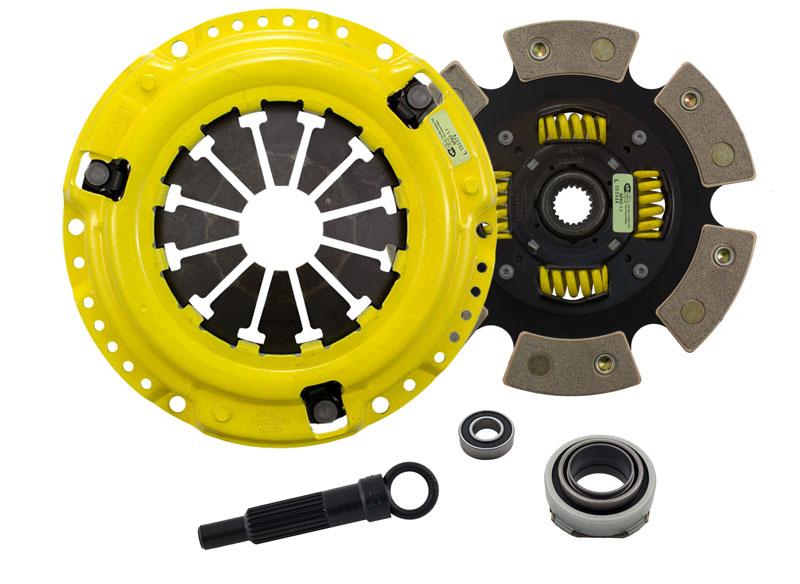

What's In The Box?

  • Clutch Friction Disc (6212104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
