• ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Celica (89-93) (TC4-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Celica (89-93) (TC4-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Celica (89-93) (TC4-XTG6)

TC4-XTG6

In stock

$690.00 USD
$852.00 USD $690.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Toyota Celica (89-93) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The clutch disc incorporates a six-pad spring-centered race design, providing optimal damping and engagement characteristics for racing and aggressive street use. Constructed with precision cover stampings, the kit delivers enhanced rigidity and reliability, making it suitable for high-stress applications.

This clutch kit is specifically engineered for 1989 to 1993 Toyota Celica models, compatible with various engine configurations within this chassis. It serves as a direct replacement upgrade for stock clutch components, offering increased holding capacity and improved response for performance driving. The kit includes the pressure plate, clutch disc, and necessary hardware for installation. Designed for track use, spirited driving, or demanding street applications, this clutch assembly provides a robust solution for drivers seeking maximum performance and longevity in their drivetrain.

Overview

ACT XT/Race Sprung 6 Pad Kit

TC4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.8
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1989-1993 Toyota Celica

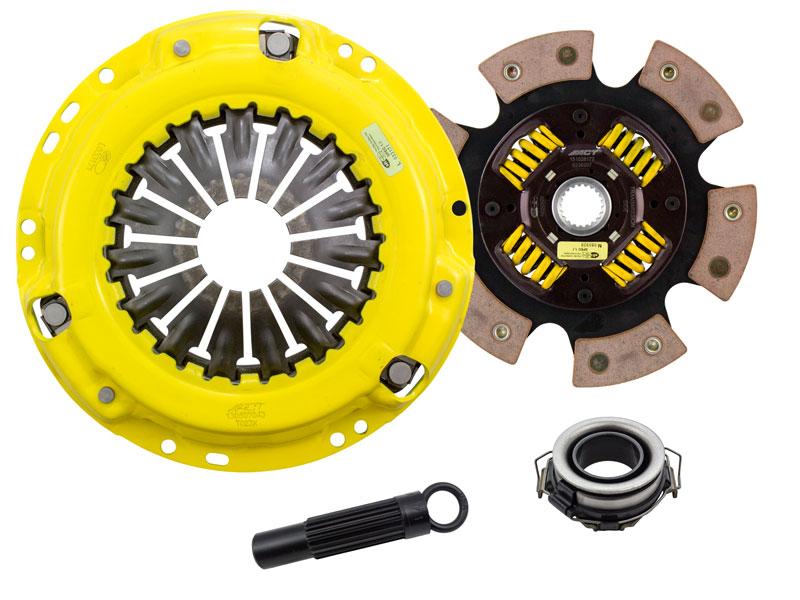

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023X)

References

Warranty

  • Manufacturer 1 Year Warranty
