• ACT Extreme Race Sprung 6 Pad Clutch Kit | Honda Prelude (90-91) (HP4-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Honda Prelude (90-91) (HP4-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Honda Prelude (90-91) (HP4-XTG6)

HP4-XTG6

Out of stock

$810.00 USD
$810.00 USD $810.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for Honda Prelude (90-91) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced clutch longevity. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The 6-pad spring-centered race disc is engineered to deliver optimal damping and engagement, making it suitable for racing and aggressive street use. Constructed with precision cover stampings, the clutch components offer rigidity and reliability under high-stress conditions, ensuring maximum power transfer and minimal slip during intense driving.

This clutch kit is specifically designed for Honda Prelude models from 1990 to 1991. It is a direct replacement upgrade for stock clutch systems, providing improved holding capacity and responsiveness for performance-oriented drivers. The assembly is bolt-on compatible with the stock flywheel and requires standard installation procedures. Ideal for track days, spirited driving, or heavy-duty applications, this kit includes the pressure plate, clutch disc, and necessary hardware. It is suitable for use with modified or stock engines, offering a reliable solution for those seeking enhanced clutch performance in street or race environments.

Overview

ACT XT/Race Sprung 6 Pad Kit

HP4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.5
  • Torque Capacity (ft/lbs.): 410
  • Torque Capacity Over OE: 1.4
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1990-1991 Honda Prelude

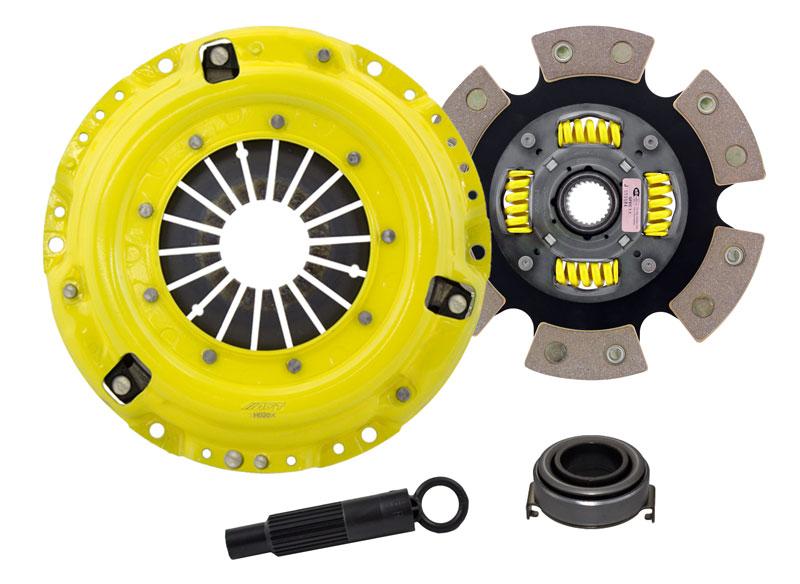

What's In The Box?

  • Clutch Friction Disc (6220110)
  • Clutch Alignment Tool (AT58)
  • Clutch Pressure Plate (H020X)
  • Clutch Release Bearing (RB817)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
