• ACT Extreme Race Sprung 6 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-XTG6)

NA1-XTG6

In stock

$570.00 USD
$704.00 USD $570.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for Nissan Stanza (90-92) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit enhances clamp load, minimizes deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings provide added rigidity. The included 6-pad spring-centered race disc is engineered to deliver optimal damping and engagement, making it suitable for aggressive street and race applications. This clutch kit is built for drivers seeking maximum holding capacity and reliability under high-stress conditions.

Designed specifically for 1990-1992 Nissan Stanza models, this clutch kit is compatible with naturally aspirated engines. It serves as a direct replacement for stock components, offering improved performance for street, track, or off-road use. Installation involves bolt-on assembly, with all necessary components included for a straightforward upgrade. The kit is ideal for enthusiasts looking to enhance their vehicle’s clutch capacity and durability, especially during high-performance driving or racing scenarios. Proper fitment and application are ensured for the specified model years, making it a reliable choice for demanding drivers.

Overview

ACT XT/Race Sprung 6 Pad Kit

NA1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.3
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 1.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1992 Nissan Stanza

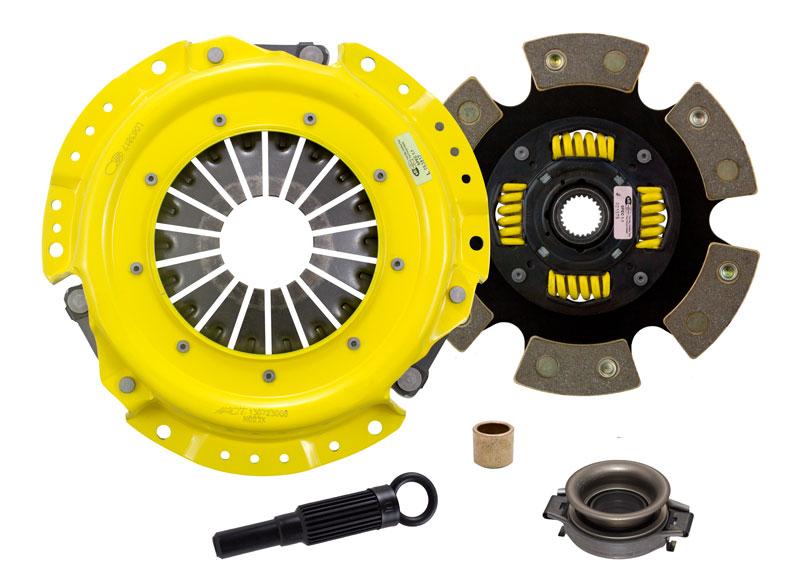

What's In The Box?

  • Clutch Friction Disc (6224106)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB816)

References

Warranty

  • Manufacturer 1 Year Warranty
