ACT XT/Race Sprung 6 Pad Clutch Kit | Mazda Miata (90-93) (ZM1-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Mazda Miata (90-93) (ZM1-XTG6)

ZM1-XTG6

In stock

$776.00 USD
$776.00 USD $776.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit ZM1-XTG6 is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate with an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances clutch longevity. The kit includes a 6-pad spring-centered race disc with spring-center construction to ensure proper damping and smooth engagement. All components undergo a four-stage heat-treating process, providing exceptional durability and heat resistance. The precision cover stampings contribute to the rigidity and consistency of the assembly, making it suitable for aggressive driving and racing applications. This clutch kit is engineered to deliver maximum performance, reliable power transfer, and extended service life under high-stress conditions.

Designed specifically for Mazda Miata models from 1990 to 1993, this clutch kit is a direct replacement upgrade for stock components. It is ideal for track use, spirited driving, or any application requiring increased clamping force and durability. The kit is a bolt-on installation, compatible with the stock flywheel and transmission setup, ensuring straightforward fitting without modifications. It provides improved pedal feel and engagement characteristics for performance-oriented drivers. The ZM1-XTG6 kit includes all necessary components for installation, offering a comprehensive solution for enhancing clutch performance on compatible Mazda Miata vehicles.

Overview

ACT XT/Race Sprung 6 Pad Kit

ZM1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with factory flywheel.
  • Product Weight (lbs.): 11.8
  • Torque Capacity (ft/lbs.): 350
  • Torque Capacity Over OE: 1.56
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1990-1993 Mazda Miata

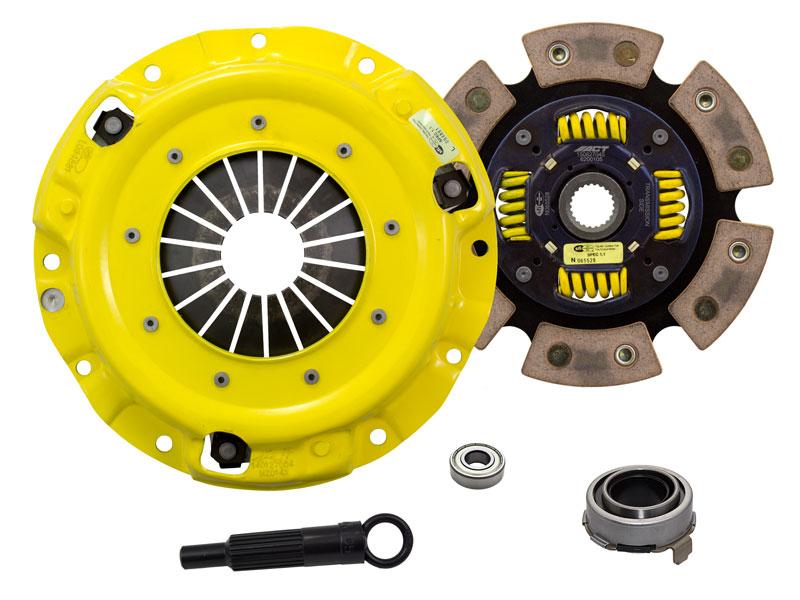

What's In The Box?

  • Clutch Friction Disc (6200105)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ014X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB813)

References

Warranty

  • Manufacturer 1 Year Warranty
