• ACT XT/Race Sprung 6 Pad Clutch Kit | Nissan 300ZX (90-96) (NX6-XTG6)
1 1

ACT XT/Race Sprung 6 Pad Clutch Kit | Nissan 300ZX (90-96) (NX6-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Nissan 300ZX (90-96) (NX6-XTG6)

NX6-XTG6

Out of stock

$828.00 USD
$828.00 USD $828.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit for the Nissan 300ZX (90-96) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life through an exclusive diaphragm design. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings provide added rigidity. The included 6-pad spring-centered race disc offers optimal damping and engagement, making it suitable for aggressive driving and racing applications. This assembly delivers reliable power transfer and improved responsiveness, ideal for drivers seeking maximum performance from their vehicle.

Designed specifically for 1990-1996 Nissan 300ZX models, this clutch kit is a direct replacement for stock components, ensuring proper fitment and ease of installation. It is suitable for street, track, or racing use, providing a balance of durability and high-performance engagement. The kit includes all necessary components for installation, including the pressure plate and clutch disc, with compatibility confirmed for the specified model years. This clutch assembly is engineered to withstand high torque loads and intense driving conditions, making it an excellent upgrade for enthusiasts and racers aiming for enhanced clutch performance.

Overview

ACT XT/Race Sprung 6 Pad Kit

NX6-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 19.9
  • Torque Capacity (ft/lbs.): 630
  • Torque Capacity Over OE: 1.23
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1996 Nissan 300ZX

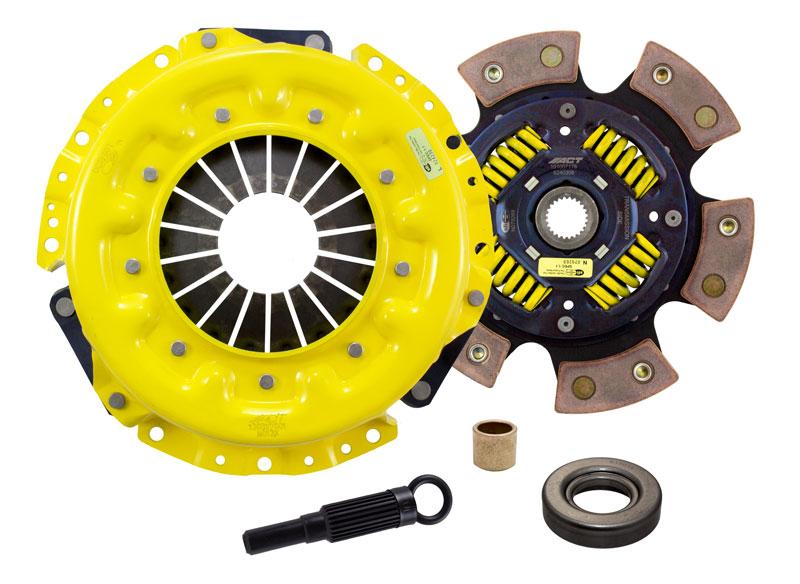

What's In The Box?

  • Clutch Friction Disc (6240306)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N013X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB810)

References

Warranty

  • Manufacturer 1 Year Warranty
