ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-XTG6)

TL3-XTG6

In stock

$723.00 USD
$723.00 USD $723.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit for the Toyota Corolla (91-92) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life through an exclusive diaphragm design. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings provide added rigidity. The 6-pad spring-centered race disc is engineered to deliver optimal damping and engagement, making it suitable for aggressive driving and racing applications. This assembly offers a reliable upgrade for drivers seeking increased power transfer and longevity in their clutch system.

Designed specifically for 1991-1992 Toyota Corolla models, this clutch kit is compatible with vehicles equipped with the appropriate engine and transmission configurations. It serves as a direct replacement for stock components, providing improved performance without sacrificing drivability. The kit is ideal for street, track, or competition use, offering enhanced grip and responsiveness under high-stress conditions. Installation is straightforward for experienced technicians, and the kit includes all necessary components for a complete upgrade. This clutch assembly is perfect for enthusiasts aiming to maximize their vehicle’s performance and durability.

Overview

ACT XT/Race Sprung 6 Pad Kit

TL3-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.4
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1991-1992 Toyota Corolla

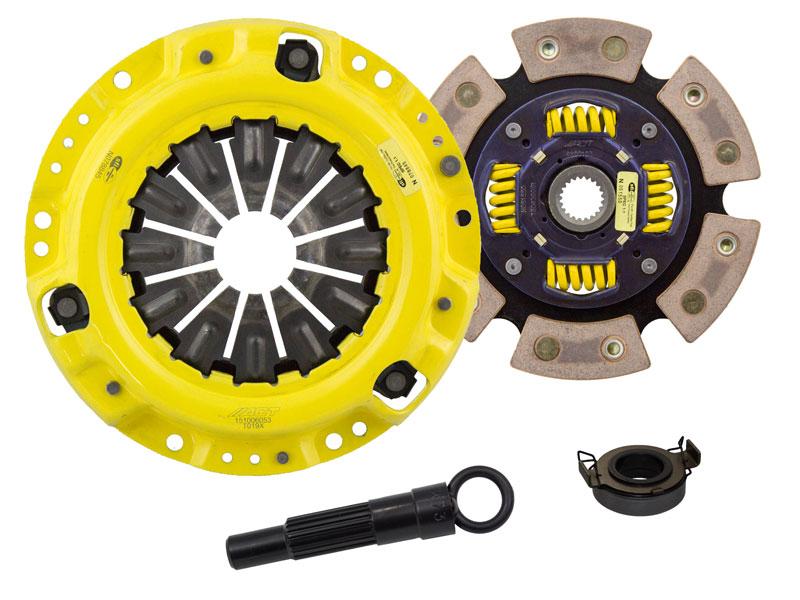

What's In The Box?

  • Clutch Friction Disc (6200103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB840)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
