• ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota MR2 (91-95) (TM1-XTG6)
1 1

ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota MR2 (91-95) (TM1-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota MR2 (91-95) (TM1-XTG6)

TM1-XTG6

Out of stock

$690.00 USD
$852.00 USD $690.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit TM1-XTG6 is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate built with an exclusive diaphragm design that enhances clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The included 6-pad spring-centered race disc employs a spring-center construction that effectively damps torsional vibrations, providing smooth engagement and reliable power transfer. Crafted with precision cover stampings, this clutch kit offers increased rigidity and stability, making it suitable for high-stress applications.

Designed specifically for the Toyota MR2 models from 1991 to 1995, this clutch kit is an ideal upgrade for street or track use where maximum performance and durability are required. It serves as a direct replacement for stock clutch components, ensuring proper fitment and seamless installation. The kit is engineered to handle increased power levels and aggressive driving styles, making it suitable for racing or spirited driving. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade. This clutch kit provides enhanced grip, longevity, and consistent engagement for drivers seeking optimal performance from their vehicle.

Overview

ACT XT/Race Sprung 6 Pad Kit

TM1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.8
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1991-1995 Toyota MR2

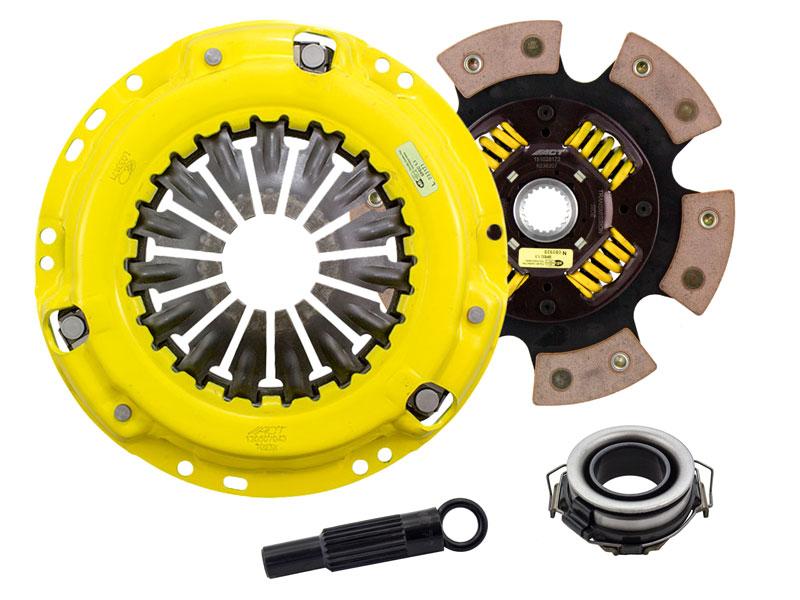

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT72)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023X)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
