• ACT Extreme Race Sprung 6 Pad Clutch Kit | Acura Integra (92-93) (AI3-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Acura Integra (92-93) (AI3-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Acura Integra (92-93) (AI3-XTG6)

AI3-XTG6

Out of stock

$646.00 USD
$797.00 USD $646.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Acura Integra (92-93) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate employs an exclusive diaphragm design that enhances performance under extreme stress, while all diaphragms undergo a four-stage heat-treating process to ensure durability and consistent operation. The kit includes a six-pad spring-centered race disc with spring-center construction, providing effective damping and smooth engagement. Constructed with precision cover stampings, the components offer rigidity and reliability, making this clutch suitable for aggressive street and track use.

This clutch kit is specifically designed for 1992-1993 Acura Integra models, compatible with various engine configurations within this chassis. It serves as a direct replacement for stock clutch components, offering improved holding capacity and heat resistance for high-performance applications. Ideal for racing, spirited driving, or heavy-duty street use, this kit ensures maximum power transfer and durability. Installation involves bolt-on replacement of existing clutch parts, and the kit typically includes the pressure plate, clutch disc, and necessary hardware. It is recommended for drivers seeking a reliable, high-capacity clutch solution for demanding driving environments.

Overview

ACT XT/Race Sprung 6 Pad Kit

AI3-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.3
  • Torque Capacity (ft/lbs.): 410
  • Torque Capacity Over OE: 1.2
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1992-1993 Acura Integra

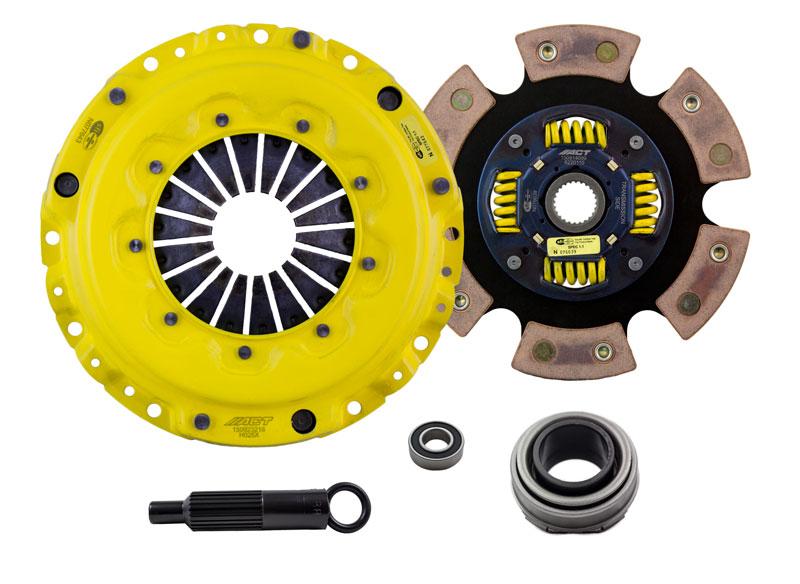

What's In The Box?

  • Clutch Friction Disc (6220110)
  • Clutch Alignment Tool (AT88)
  • Clutch Pressure Plate (H025X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
