• ACT Extreme Race Sprung 6 Pad Clutch Kit | Ford Mustang (96-01) (FM7-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Ford Mustang (96-01) (FM7-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Ford Mustang (96-01) (FM7-XTG6)

FM7-XTG6

Out of stock

$646.00 USD
$797.00 USD $646.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Ford Mustang (96-01) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The inclusion of a 6-pad spring-centered race disc provides optimal damping and engagement characteristics, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components offer enhanced rigidity and reliability, ensuring the system can handle high torque loads and repeated use without compromise.

This clutch kit is specifically designed for 1996-2001 Ford Mustangs, providing a direct replacement for stock components. It is ideal for street and track use, especially in high-performance or racing scenarios where increased clamping force and durability are critical. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with stock or upgraded flywheels, this clutch assembly is suitable for vehicles with modified or stock engines seeking improved power transfer and engagement. Proper installation ensures optimal performance and longevity, making it a preferred choice for enthusiasts seeking maximum clutch performance in their Mustang.

Overview

ACT XT/Race Sprung 6 Pad Kit

FM7-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 23.2
  • Torque Capacity (ft/lbs.): 735
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266
  • Disc Material: Ceramic
  • Input Spline Quantity: 10
  • Input Shaft Diameter (in.): 1.0625
  • Alignment Tool Included: Yes

Applications

  • 1996-2001 Ford Mustang GT

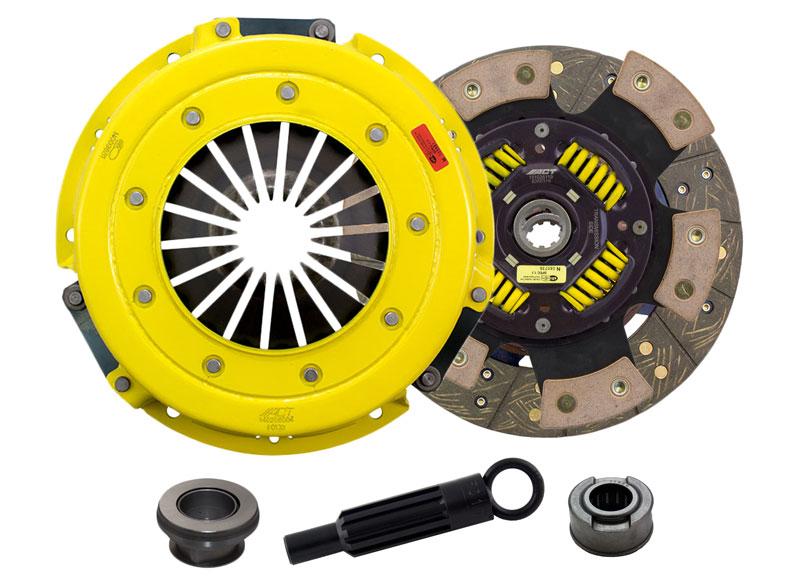

What's In The Box?

  • Clutch Friction Disc (6266319)
  • Clutch Alignment Tool (ATFC10)
  • Clutch Pressure Plate (F013X)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
