ACT Extreme Race Sprung 6 Pad Clutch Kit | Lexus IS300 (02-05) (TS5-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Lexus IS300 (02-05) (TS5-XTG6)

TS5-XTG6

In stock

$667.00 USD
$823.00 USD $667.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Lexus IS300 (02-05) is a high-performance clutch system designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced durability for aggressive street and track use. The pressure plate employs an exclusive diaphragm design that undergoes a four-stage heat-treating process, ensuring maximum performance and longevity. The inclusion of a 6-pad spring-centered race disc offers optimal damping and consistent engagement, making it suitable for high-stress applications. Constructed with precision cover stampings, the clutch components deliver rigidity and reliability under intense driving conditions, making it an ideal upgrade for enthusiasts seeking superior power transfer and durability.

This clutch kit is specifically designed for 2002 to 2005 Lexus IS300 models equipped with the 2JZ-GE engine. It is a direct replacement upgrade that enhances performance for street, track, or spirited driving. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Suitable for drivers demanding increased holding capacity and improved pedal feel, this clutch system is engineered to withstand high torque loads and aggressive driving styles. Compatibility is optimized for stock or mildly modified engines, providing a reliable solution for performance-oriented applications on the specified vehicle years and models.

Overview

ACT XT/Race Sprung 6 Pad Kit

TS5-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with aftermarket single-mass flywheel (not included).
  • Product Weight (lbs.): 17.3
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.07
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 2002-2005 Lexus IS300

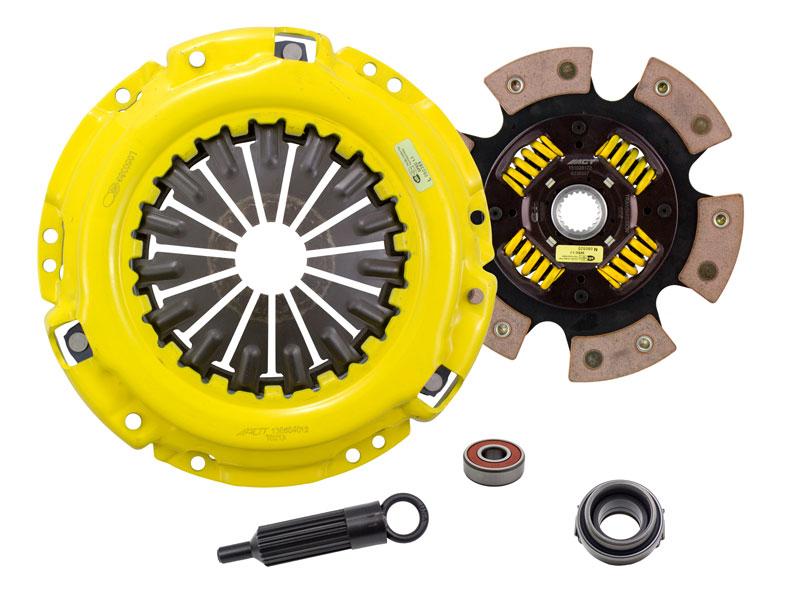

What's In The Box?

  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB443)
  • Clutch Pressure Plate (T021X)
  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT11)

References

Warranty

  • Manufacturer 1 Year Warranty
