• ACT Extreme Race Sprung 6 Pad Clutch Kit | Mitsubishi Lancer (02-06) (MB8-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Mitsubishi Lancer (02-06) (MB8-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Mitsubishi Lancer (02-06) (MB8-XTG6)

MB8-XTG6

Out of stock

$649.00 USD
$649.00 USD $649.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for Mitsubishi Lancer (2002-2006) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate utilizes an exclusive diaphragm design that undergoes a four-stage heat-treating process, ensuring durability and consistent performance under intense use. The clutch disc incorporates a spring-centered, 6-pad race design that effectively damps torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings for added rigidity, this kit is built to withstand aggressive driving and track use, making it ideal for motorsport enthusiasts and high-performance applications.

Designed specifically for Mitsubishi Lancer models from 2002 to 2006, this clutch kit is a direct replacement upgrade for stock components. It is suitable for vehicles equipped with high-performance engines or those subjected to frequent spirited driving, track days, or racing. The kit includes a sprung 6-pad race disc and a heavy-duty pressure plate, ensuring optimal engagement and longevity. Installation is straightforward for experienced technicians familiar with clutch replacements on this chassis. This clutch kit provides a reliable, high-capacity solution for drivers seeking enhanced performance and durability in demanding driving scenarios.

Overview

ACT XT/Race Sprung 6 Pad Kit

MB8-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.49
  • Pressure Plate Type: Xtreme
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 11.1

Applications

  • 2002-2006 Mitsubishi Lancer

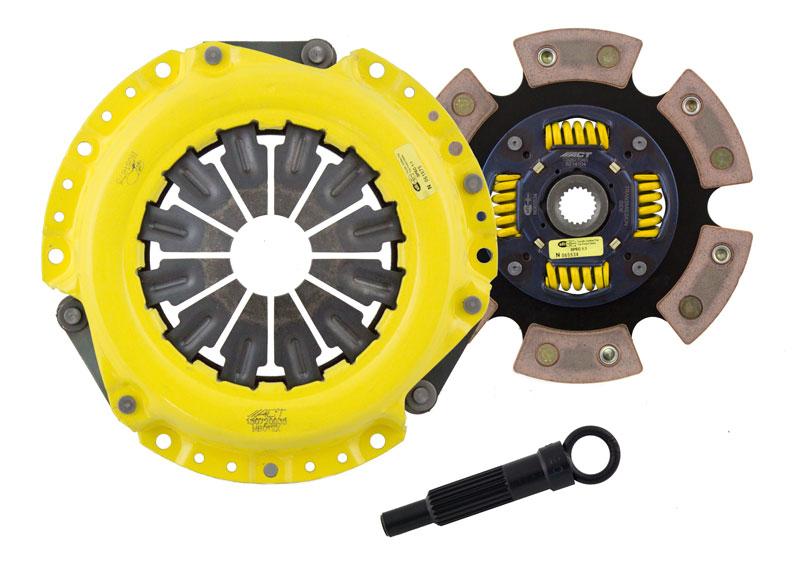

What's In The Box?

  • Clutch Friction Disc (6214104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (MB012X)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
