ACT Extreme Race Sprung 6 Pad Clutch Kit | Audi A6 Quattro/S4/Allroad (00-05) (AA6-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Audi A6 Quattro/S4/Allroad (00-05) (AA6-XTG6)

AA6-XTG6

Out of stock

$1,708.00 USD
$2,109.00 USD $1,708.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Audi A6 Quattro, S4, and Allroad (2000-2005) is a high-performance clutch upgrade designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and maximizes clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The included 6-pad spring-centered race disc employs spring-center construction to provide optimal damping and engagement characteristics, making it suitable for aggressive street or track use. Constructed with precision cover stampings, the clutch components deliver enhanced rigidity and reliability for high-power applications.

This clutch kit is engineered specifically for 2000-2005 Audi A6 Quattro, S4, and Allroad models equipped with compatible transmissions. It serves as a direct replacement for stock clutch components, offering improved holding capacity and responsiveness for spirited driving or racing scenarios. Installation involves standard bolt-on procedures, making it suitable for experienced enthusiasts and professional mechanics. The kit includes the pressure plate, race disc, and necessary hardware, ensuring a complete upgrade. Designed for high-performance street and track use, this clutch kit provides increased durability and consistent engagement under demanding conditions.

Overview

ACT XT/Race Sprung 6 Pad Kit

AA6-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Flywheel Mounting Hole Quantity: 8
  • Flywheel Tooth Quantity: 135
  • Flywheel Type: Streetlite
  • Part Fitment Requirement: Conversion kit. Must use ACT flywheel (included in kit).
  • Product Weight (lbs.): 30
  • Torque Capacity (ft/lbs.): 660
  • Torque Capacity Over OE: 0.82
  • Flywheel Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 2000-2002 Audi S4
  • 2001-2005 Audi Allroad Quattro
  • 2000-2004 Audi A6 Quattro

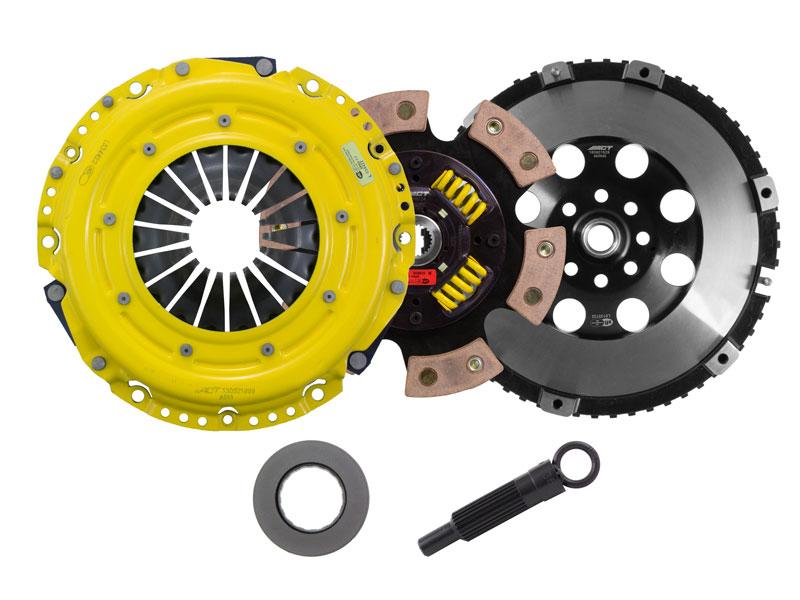

What's In The Box?

  • Clutch Flywheel (600940)
  • Clutch Friction Disc (6240527C)
  • Clutch Pressure Plate (A011)
  • Clutch Alignment Tool (AT36)
  • Clutch Pilot Bearing (PB1009)
  • Clutch Release Bearing (RB1301)

References

Warranty

  • Manufacturer 1 Year Warranty
