• ACT XT/Race Sprung 6 Pad Clutch Kit | Honda Civic (12) (AR2-XTG6)
1 1

ACT XT/Race Sprung 6 Pad Clutch Kit | Honda Civic (12) (AR2-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Honda Civic (12) (AR2-XTG6)

AR2-XTG6

In stock

$1,035.00 USD
$1,278.00 USD $1,035.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit for the Honda Civic (12) is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The kit includes a 6-pad spring-centered race disc with spring-center construction, providing optimal damping and engagement characteristics. Constructed with precision cover stampings, this clutch kit delivers increased rigidity and reliability, making it suitable for aggressive street and track applications.

Designed specifically for the 2012 Honda Civic, this clutch kit is a direct replacement for stock components, offering enhanced holding capacity and durability for high-performance driving. It is ideal for street, track, or racing use where maximum clamping force and longevity are required. The kit is engineered for easy installation, compatible with the stock flywheel and transmission setup. Suitable for drivers seeking a reliable, high-performance clutch solution, the ACT XT/Race Sprung 6 Pad Clutch Kit ensures consistent power transfer and improved engagement under demanding conditions.

Overview

ACT XT/Race Sprung 6 Pad Kit

AR2-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must use ACT flywheel (included in kit).
  • Product Weight (lbs.): 26.1
  • Torque Capacity (ft/lbs.): 435
  • Torque Capacity Over OE: 1.09
  • Flywheel Included: Yes
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 2009-2014 Acura TSX
  • 2003-2012 Honda Accord
  • 2012-2015 Honda Civic
  • 2013-2015 Acura ILX

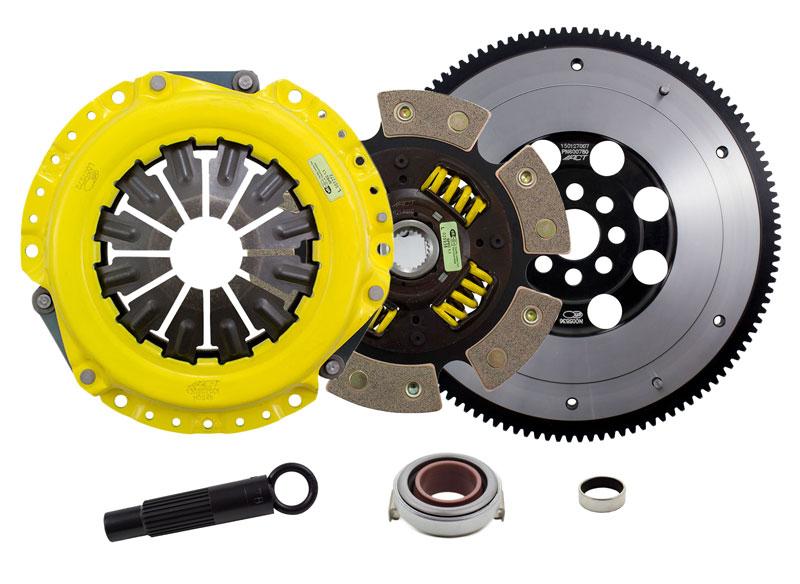

What's In The Box?

  • Clutch Flywheel (600780)
  • Clutch Friction Disc (6214510)
  • Clutch Alignment Tool (AT78)
  • Clutch Pressure Plate (H024X)
  • Clutch Pilot Bushing (PBNA004)
  • Clutch Release Bearing (RB313)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
