ACT Extreme Race Sprung 6 Pad Clutch Kit | Ford Mustang 1993 (FM1-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Ford Mustang 1993 (FM1-XTG6)

FM1-XTG6

Out of stock

$646.00 USD
$797.00 USD $646.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the 1993 Ford Mustang is a high-performance clutch system designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process, ensuring durability and consistent performance under intense use. The kit includes a 6-pad spring-centered race disc with spring-center construction, providing effective damping and engagement characteristics for racing or aggressive street driving. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability, making it suitable for high-stress applications.

Designed specifically for the 1993 Ford Mustang, this clutch kit is compatible with models equipped with appropriate engine configurations. It serves as a direct replacement and performance upgrade for stock clutch systems, ideal for track days, racing, or spirited street driving. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included in the kit. This setup is engineered to handle increased power and torque, delivering improved grip, pedal feel, and longevity for performance-oriented drivers seeking maximum clutch performance in their Mustang.

Overview

ACT XT/Race Sprung 6 Pad Kit

FM1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 23.2
  • Torque Capacity (ft/lbs.): 735
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266
  • Disc Material: Ceramic
  • Input Spline Quantity: 10
  • Input Shaft Diameter (in.): 1.0625
  • Alignment Tool Included: Yes

Applications

  • 1986-1995 Ford Mustang LX, GT, SVT Cobra

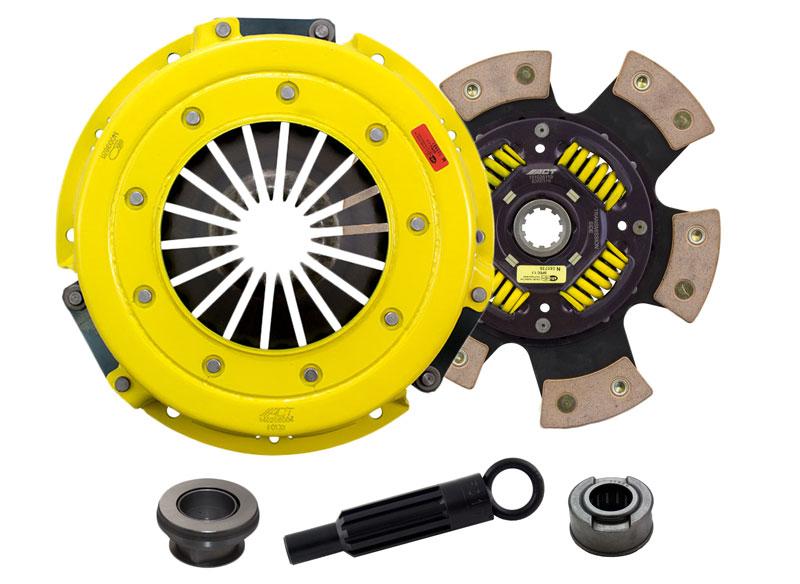

What's In The Box?

  • Clutch Friction Disc (6266319)
  • Clutch Alignment Tool (ATFC10)
  • Clutch Pressure Plate (F013X)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
