ACT Extreme Race Sprung 6 Pad Clutch Kit | Honda Civic (90) (HC4-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Honda Civic (90) (HC4-XTG6)

HC4-XTG6

In stock

$578.00 USD
$713.00 USD $578.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for Honda Civic (90) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit provides increased clamp load, reduced deflection, and enhanced clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings contribute to rigidity and stability during intense operation. The included 6-pad spring-centered race disc offers optimal damping and engagement characteristics, making it suitable for aggressive street and race applications. This assembly is engineered to deliver maximum power transfer and reliability under high-stress conditions.

Designed for the Honda Civic (90) with specific fitment for models requiring HC4-XTG6, this clutch kit is ideal for track days, spirited driving, or any scenario demanding superior clutch performance. It is a direct replacement for stock components, ensuring straightforward installation and compatibility. The kit includes the pressure plate, race disc, and necessary hardware, providing a complete upgrade for vehicles subjected to high torque loads. Suitable for use in street or race environments, this clutch assembly enhances driving confidence by offering increased clamp force, improved heat resistance, and consistent engagement for demanding drivers.

Overview

ACT XT/Race Sprung 6 Pad Kit

HC4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda CRX
  • 1989-1991 Honda Civic

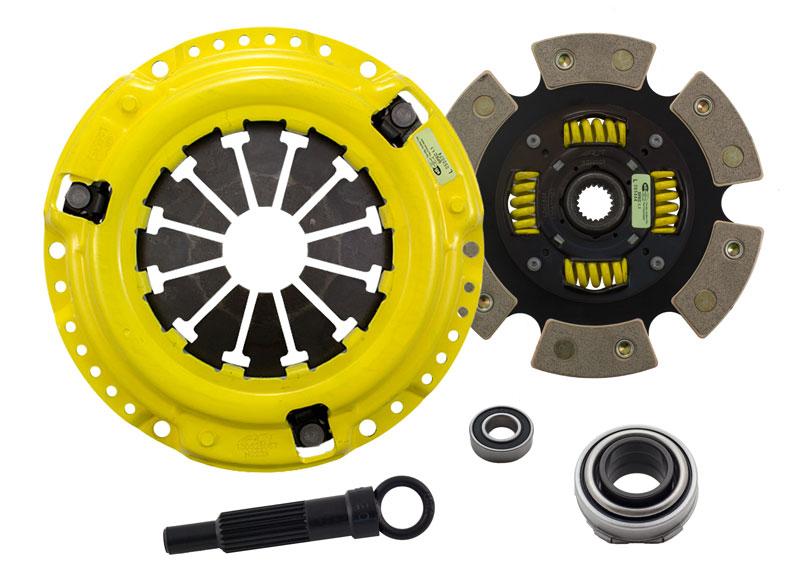

What's In The Box?

  • Clutch Friction Disc (6212104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
