ACT Extreme Race Sprung 6 Pad Clutch Kit | Multiple Fitments (HC6-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Multiple Fitments (HC6-XTG6)

HC6-XTG6

In stock

$578.00 USD
$713.00 USD $578.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit provides increased clamp load, reduced deflection, and enhanced clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The 6-pad spring-centered race disc is engineered to deliver precise engagement and reliable power transfer, making it suitable for aggressive driving and racing applications. Constructed with high-quality materials and precision cover stampings, this clutch kit offers superior rigidity and stability, optimizing vehicle response and control.

This clutch kit is compatible with a variety of vehicles requiring a high-performance upgrade, suitable for street, track, or racing use. It is designed as a direct replacement for stock clutch components, ensuring straightforward installation. The kit includes the pressure plate, race disc, and necessary hardware for a complete upgrade. Ideal for drivers seeking maximum performance and durability, this clutch assembly supports increased power levels and aggressive driving styles. Proper fitment depends on specific vehicle applications, so verifying compatibility with your make and model is recommended for optimal results.

Overview

ACT XT/Race Sprung 6 Pad Kit

HC6-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic
  • 1988-1988 Honda CRX

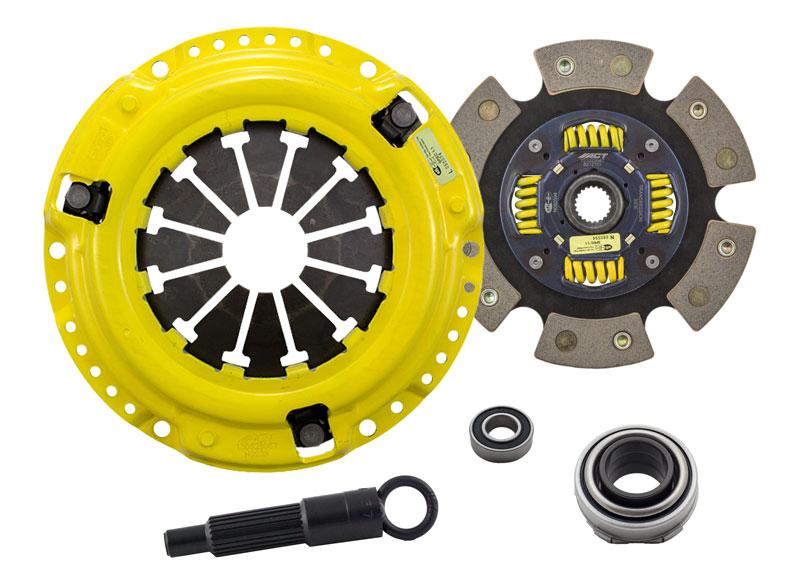

What's In The Box?

  • Clutch Friction Disc (6212111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
