ACT Extreme Race Sprung 6 Pad Clutch Kit | Chrysler Conquest 1987 (MS1-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Chrysler Conquest 1987 (MS1-XTG6)

MS1-XTG6

In stock

$662.00 USD
$817.00 USD $662.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Chrysler Conquest 1987 is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The inclusion of a 6-pad spring-centered race disc provides optimal damping and engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components deliver enhanced rigidity and reliability, ensuring maximum power transfer and minimal slip during high-performance use.

Designed specifically for 1987 Chrysler Conquest models, this clutch kit is compatible with vehicles equipped with suitable engine configurations. It serves as a direct replacement for stock clutch components, offering increased clamping force and durability for street and race driving. The kit is ideal for enthusiasts seeking a reliable, high-performance upgrade capable of handling increased power levels and aggressive driving styles. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade. Suitable for track days, street performance, and demanding driving conditions, this clutch kit provides the performance and longevity required for serious automotive enthusiasts.

Overview

ACT XT/Race Sprung 6 Pad Kit

MS1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 16.5
  • Torque Capacity (ft/lbs.): 565
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1989 Mitsubishi Starion
  • 1987-1989 Chrysler Conquest

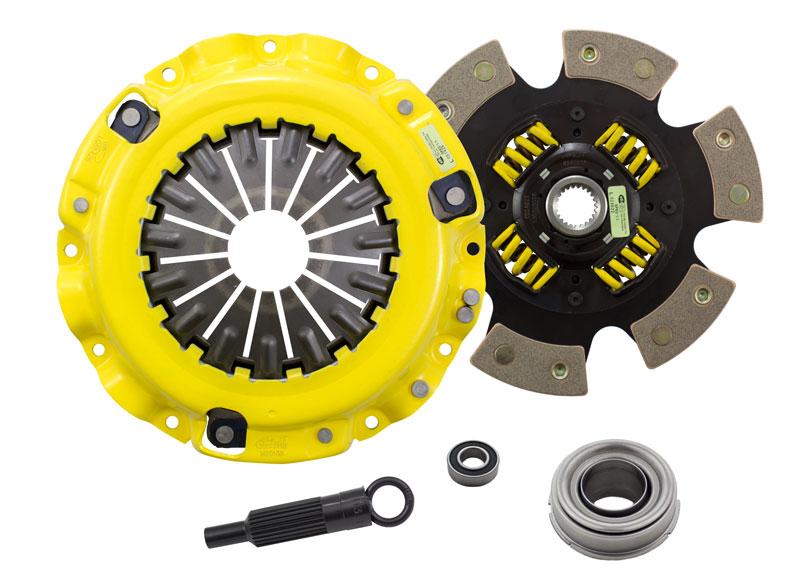

What's In The Box?

  • Clutch Friction Disc (6240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB422)

References

Warranty

  • Manufacturer 1 Year Warranty
