• ACT XT/Race Sprung 6 Pad Clutch Kit | Infiniti I30 (96) (NM1-XTG6)
1 1

ACT XT/Race Sprung 6 Pad Clutch Kit | Infiniti I30 (96) (NM1-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Infiniti I30 (96) (NM1-XTG6)

NM1-XTG6

In stock

$629.00 USD
$776.00 USD $629.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit for the Infiniti I30 (96) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings enhance rigidity. The included 6-pad spring-centered race disc is engineered to provide optimal damping and engagement characteristics, making it suitable for aggressive street and racing applications. Overall, this clutch kit delivers superior holding capacity, heat resistance, and reliability for high-stress driving environments.

Designed specifically for the 1996 Infiniti I30, this clutch kit is compatible with models equipped with the stock engine and transmission. It serves as a direct replacement for the factory clutch, offering increased performance for street, track, or spirited driving. The assembly is bolt-on and requires no additional modifications for installation. The kit includes the pressure plate, race disc, and necessary hardware, ensuring a complete upgrade. Ideal for drivers seeking enhanced clutch performance and longevity, this ACT clutch kit provides a robust solution for high-performance applications on the Infiniti I30.

Overview

ACT XT/Race Sprung 6 Pad Kit

NM1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 17
  • Torque Capacity (ft/lbs.): 565
  • Torque Capacity Over OE: 1.27
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1996-1999 Infiniti I30
  • 1985-2001 Nissan Maxima

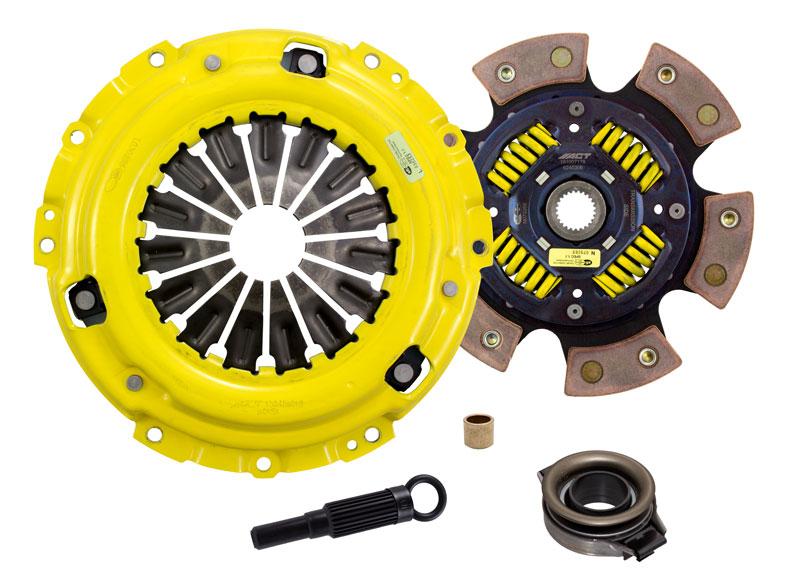

What's In The Box?

  • Clutch Friction Disc (6240306)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N015X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB809)

References

Warranty

  • Manufacturer 1 Year Warranty
