ACT Extreme Race Sprung 6 Pad Clutch Kit | Nissan 240SX (1989) (NX1-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Nissan 240SX (1989) (NX1-XTG6)

NX1-XTG6

In stock

$569.00 USD
$702.00 USD $569.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Nissan 240SX (1989) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced durability, making it suitable for aggressive street and race applications. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The 6-pad spring-centered race disc offers optimal damping and consistent engagement, delivering reliable power transfer and improved pedal feel. Constructed with precision cover stampings for rigidity, this clutch kit is engineered to withstand high torque loads and intense driving environments.

Designed specifically for the 1989 Nissan 240SX, this clutch kit is a direct replacement for stock components, providing a significant upgrade for performance enthusiasts. It is ideal for street, track, and drag racing use, where enhanced clamping force and durability are critical. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with the NX1-XTG6 model, this clutch assembly is suitable for drivers seeking increased performance and reliability in high-stress driving scenarios. Proper installation and use within the vehicle's specifications will maximize the benefits of this high-performance clutch kit.

Overview

ACT XT/Race Sprung 6 Pad Kit

NX1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 14.9
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 1.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8

Applications

  • 1980-1983 Nissan 720
  • 1981-1984 Nissan Maxima
  • 1975-1979 Nissan 620
  • 1975-1978 Nissan 280Z
  • 1989-1998 Nissan 240SX
  • 1980-1986 Nissan 720
  • 1990-1990 Nissan Axxess
  • 1979-1983 Nissan 280ZX

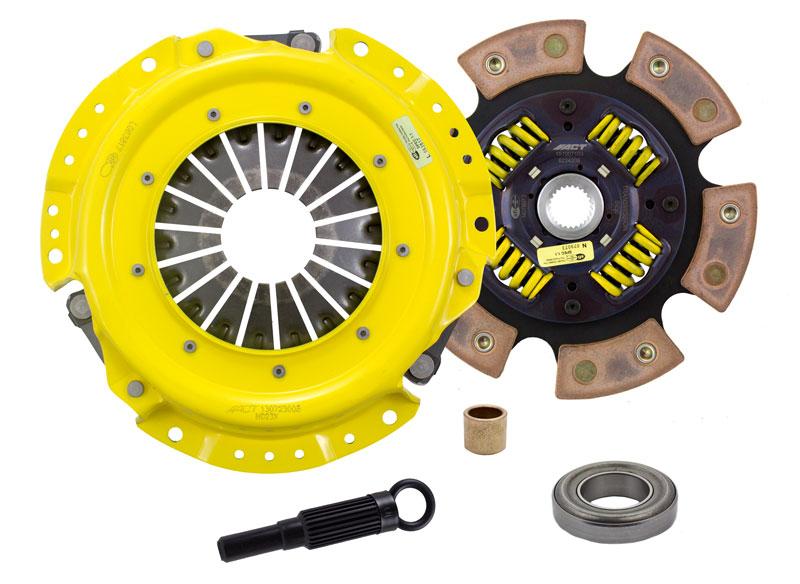

What's In The Box?

  • Clutch Friction Disc (6224206)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB016)

References

Warranty

  • Manufacturer 1 Year Warranty
