• ACT Extreme Race Sprung 6 Pad Clutch Kit | Nissan 280ZX (81) (NX2-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Nissan 280ZX (81) (NX2-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Nissan 280ZX (81) (NX2-XTG6)

NX2-XTG6

Out of stock

$795.00 USD
$795.00 USD $795.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Nissan 280ZX (81) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and maximizes clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The included 6-pad spring-centered race disc provides optimal damping and engagement, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components deliver enhanced rigidity and reliability, ensuring maximum power transfer and longevity.

This clutch kit is specifically engineered for the Nissan 280ZX (81) equipped with compatible engine configurations. It is a direct replacement upgrade for stock clutch systems, offering improved holding capacity and responsiveness for street and track use. The assembly is designed for bolt-on installation, requiring no additional modifications. The kit includes the pressure plate, race disc, and necessary hardware for a complete upgrade. Ideal for performance enthusiasts and racers, this clutch kit provides a reliable, high-capacity solution for demanding driving environments and high horsepower applications.

Overview

ACT XT/Race Sprung 6 Pad Kit

NX2-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 19.8
  • Torque Capacity (ft/lbs.): 630
  • Torque Capacity Over OE: 1.23
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1988 Nissan 200SX
  • 1979-1983 Nissan 280ZX
  • 1987-1987 Nissan Pathfinder
  • 1986-1994 Nissan D21
  • 1984-1989 Nissan 300ZX
  • 1995-1998 Nissan Pickup

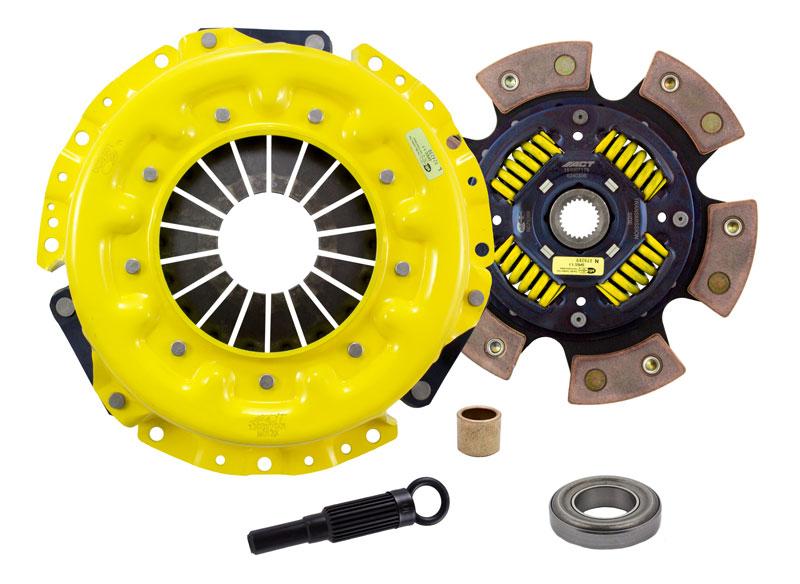

What's In The Box?

  • Clutch Friction Disc (6240306)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N013X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB016)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
