ACT Extreme Race Sprung 6 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC1-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC1-XTG6)

TC1-XTG6

In stock

$610.00 USD
$753.00 USD $610.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the 1991 Geo Prizm XT is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under extreme conditions. The clutch disc incorporates a six-pad spring-centered design, which effectively damps torsional vibrations and provides smooth engagement, making it suitable for racing and high-stress applications. Constructed with precision cover stampings, the components deliver rigidity and reliability, ensuring optimal power transfer and longevity.

This clutch kit is specifically engineered for the 1991 Geo Prizm XT, compatible with models equipped with the TC1 engine code. It serves as a direct replacement or upgrade for stock clutch components, ideal for track use, aggressive street driving, or racing scenarios where maximum performance is required. The kit includes all necessary components for installation, such as the pressure plate and clutch disc, ensuring a straightforward bolt-on process. Designed to withstand high torque loads and intense driving conditions, this clutch kit enhances overall vehicle responsiveness and durability for performance-oriented drivers.

Overview

ACT XT/Race Sprung 6 Pad Kit

TC1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.6
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 1.22
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1990-1991 Toyota Celica
  • 1990-1991 Geo Prizm
  • 1985-1989 Toyota MR2
  • 1989-1991 Toyota Corolla

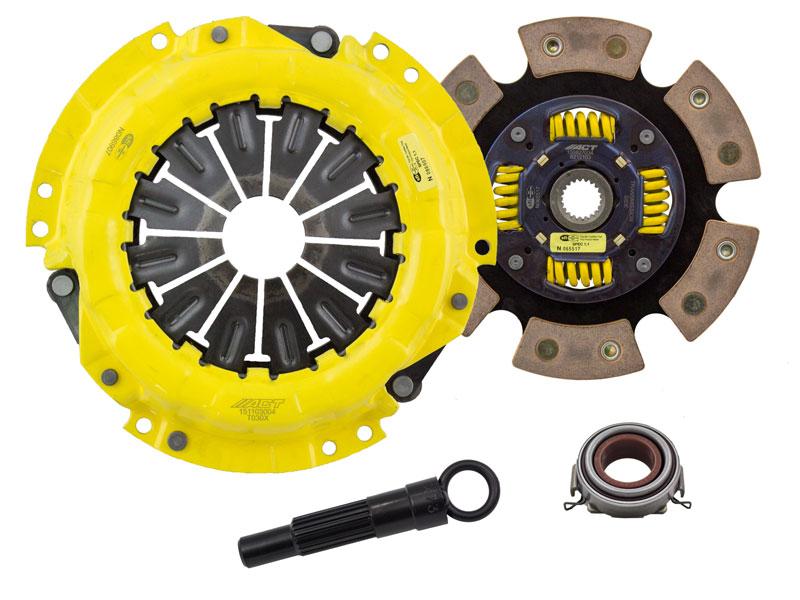

What's In The Box?

  • Clutch Pressure Plate (T030X)
  • Clutch Friction Disc (6212103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB371)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
