• ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Camry (88) (TC6-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Camry (88) (TC6-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Camry (88) (TC6-XTG6)

TC6-XTG6

Out of stock

$808.00 USD
$808.00 USD $808.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Toyota Camry (88) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under intense use. The clutch disc incorporates a spring-centered, six-pad race design that effectively damps torsional vibrations, providing smooth engagement and enhanced control. Built with precision cover stampings, this clutch kit offers rigidity and reliability, making it suitable for high-stress applications.

Designed for the Toyota Camry (1988 model), this clutch kit is compatible with vehicles equipped with similar specifications and intended for performance driving, including street and track use. It serves as a direct replacement for stock clutch components, delivering increased clamping force and improved durability. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Ideal for drivers seeking a reliable, high-performance clutch solution, this ACT kit enhances power transfer and pedal feel, making it suitable for aggressive driving and racing scenarios.

Overview

ACT XT/Race Sprung 6 Pad Kit

TC6-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 15.2
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 1.06
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1988-2006 Toyota Camry
  • 2002-2006 Toyota Solara
  • 2005-2006 Scion tC

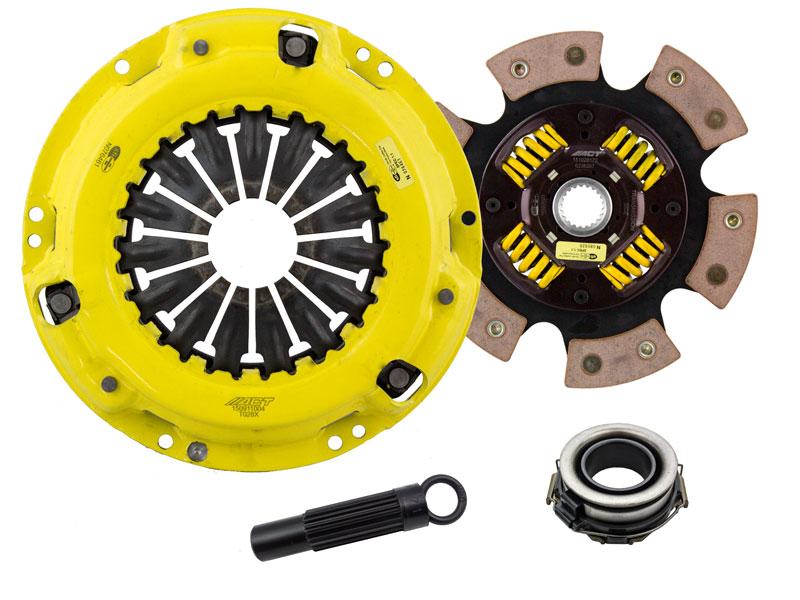

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB219)
  • Clutch Pressure Plate (T028X)

References

Warranty

  • Manufacturer 1 Year Warranty
