ACT Extreme Race Sprung 6 Pad Clutch Kit | Scion tC 2006 (TC7-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Scion tC 2006 (TC7-XTG6)

TC7-XTG6

Out of stock

$800.00 USD
$800.00 USD $800.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the 2006 Scion tC (model TC7-XTG6) is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The kit includes a 6-pad spring-centered race disc with spring-center construction, providing effective damping and smooth engagement. Built with precision cover stampings, this clutch kit offers enhanced rigidity and reliability, making it suitable for aggressive street and track use.

Designed specifically for the 2006 Scion tC equipped with the 2.4L engine, this clutch kit is a direct replacement upgrade for stock components. It is engineered to handle increased power and torque, making it ideal for high-performance applications, spirited driving, or racing scenarios. The installation involves bolt-on replacement of the existing clutch components, ensuring a straightforward upgrade process. The kit provides all necessary components for a complete clutch overhaul, delivering improved holding capacity and longevity. Suitable for drivers seeking maximum performance and durability, this clutch kit enhances driving confidence on both street and track environments.

Overview

ACT XT/Race Sprung 6 Pad Kit

TC7-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 15.4
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 1.06
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 2007-2008 Toyota Camry
  • 2009-2013 Toyota Matrix
  • 2006-2010 Scion tC
  • 2008-2015 Scion xB
  • 2009-2012 Toyota Corolla

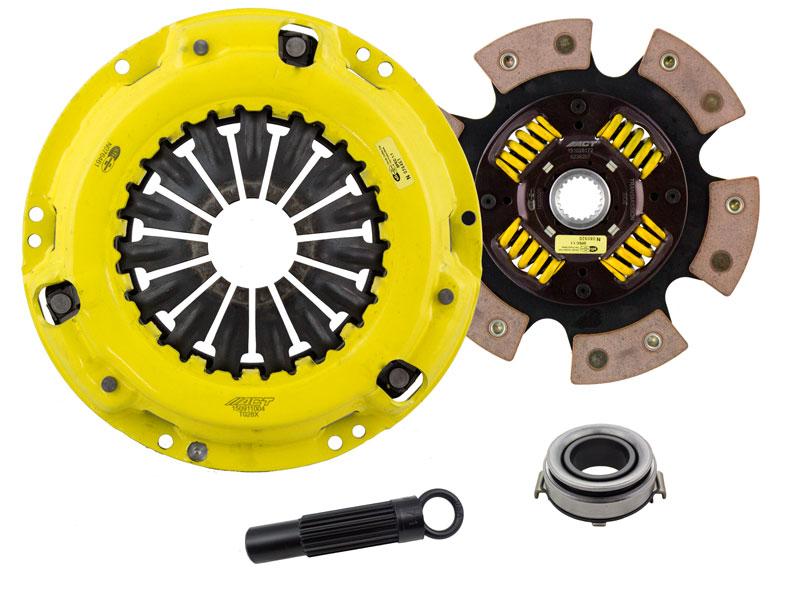

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB084)
  • Clutch Pressure Plate (T028X)

References

Warranty

  • Manufacturer 1 Year Warranty
