| Year | Make | Model |
|---|---|---|
| 2011 - 2016 | Scion | tC Base |
| 2010 - 2011 | Toyota | Camry Base |
| 2010 - 2011 | Toyota | Camry LE |
| 2010 - 2011 | Toyota | Camry SE |
| 2010 - 2011 | Toyota | Camry XLE |

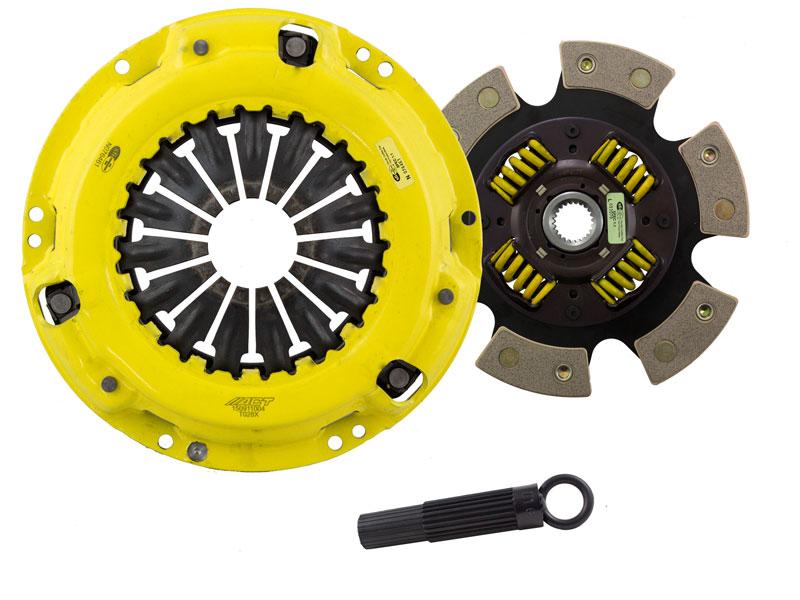

ACT Extreme Race Sprung 6 Pad Clutch Kit | Scion tC (13) (TC8-XTG6)
ACT Extreme Race Sprung 6 Pad Clutch Kit | Scion tC (13) (TC8-XTG6)
SKU:TC8-XTG6
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Scion tC (13) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced durability to withstand aggressive driving and racing applications. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The inclusion of a 6-pad spring-centered race disc offers optimal damping and consistent engagement, making it suitable for high-stress environments. Constructed with precision cover stampings, the clutch components deliver rigidity and reliability, ensuring consistent power transfer and improved clutch life.
This clutch kit is specifically engineered for the 2013 Scion tC equipped with the appropriate engine and transmission setup. It is a direct replacement and upgrade for stock clutch components, providing increased holding capacity and improved pedal feel for spirited driving, track use, or heavy-duty applications. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Designed for street and race use, this clutch assembly enhances performance under high torque loads while maintaining drivability and durability. Compatibility is optimized for the specified vehicle, making it an ideal choice for enthusiasts seeking maximum clutch performance.
Share
Overview
Overview
ACT XT/Race Sprung 6 Pad Kit
TC8-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Features
- Product Weight (lbs.): 14.7
- Torque Capacity (ft/lbs.): 500
- Torque Capacity Over OE: 1.06
- Pressure Plate Type: Xtreme
- Clutch Disc Diameter (in.): 9.3
- Clutch Disc Diameter (mm): 236
- Disc Material: Ceramic
- Input Spline Quantity: 23
- Input Shaft Diameter (in.): 1
- Alignment Tool Included: Yes
Applications
- 2010-2011 Toyota Camry
- 2011-2016 Scion tC
What's In The Box?
- Clutch Friction Disc (6236208)
- Clutch Alignment Tool (AT116)
- Clutch Pressure Plate (T028X)
References
Warranty
- Manufacturer 1 Year Warranty
