• ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Corolla XT/Race (1986) (TL2-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Corolla XT/Race (1986) (TL2-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Corolla XT/Race (1986) (TL2-XTG6)

TL2-XTG6

In stock

$710.00 USD
$710.00 USD $710.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The included 6-pad spring-centered race disc employs a spring-center construction that effectively damps torsional vibrations, providing smooth engagement and reliable power transfer. Built with precision cover stampings for rigidity, this clutch kit is engineered to deliver maximum performance and durability for competitive and high-stress applications.

This clutch kit is compatible with the 1986 Toyota Corolla XT/Race models, specifically designed for those requiring a robust upgrade for racing or aggressive street driving. It serves as a direct replacement for stock components, offering increased clamping force and improved heat resistance. Installation involves bolt-on replacement of the existing clutch components, making it suitable for experienced enthusiasts and professional mechanics. The kit includes the pressure plate, race disc, and necessary hardware, ensuring a comprehensive upgrade. Ideal for track use, high-performance street driving, or applications demanding maximum clutch capacity, this ACT clutch kit provides the reliability and performance needed for extreme driving conditions.

Overview

ACT XT/Race Sprung 6 Pad Kit

TL2-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.5
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1986-1991 Toyota Corolla
  • 1991-1998 Toyota Tercel
  • 1985-1988 Chevrolet Nova
  • 1985-1985 Toyota MR2
  • 1989-1991 Geo Prizm
  • 1992-1998 Toyota Paseo

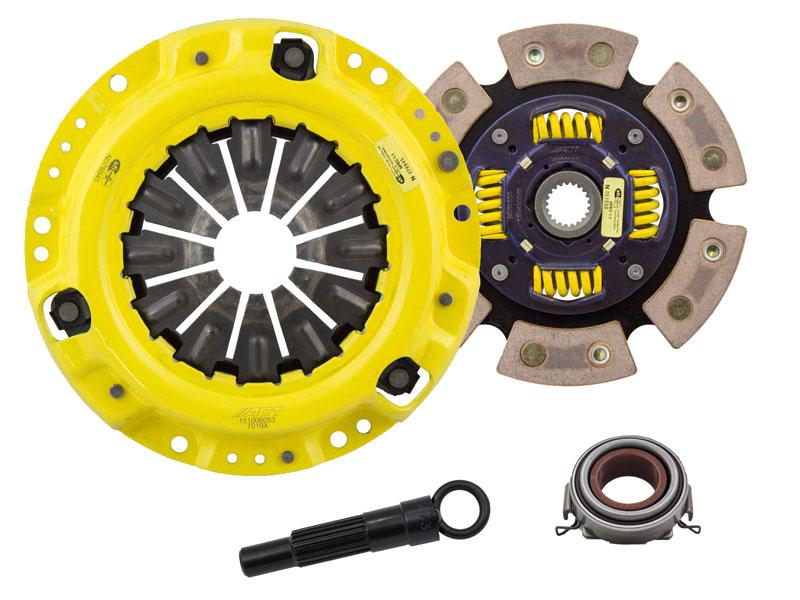

What's In The Box?

  • Clutch Friction Disc (6200103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB371)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
