• ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTG6)
1 1

ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTG6)

ACT XT/Race Sprung 6 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTG6)

TS1-XTG6

In stock

$644.00 USD
$795.00 USD $644.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Sprung 6 Pad Clutch Kit for the Toyota 4Runner (1987) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life through an exclusive diaphragm design and a four-stage heat-treating process. The pressure plate's precision cover stampings ensure rigidity and consistency, while the 6-pad spring-centered race disc provides optimal damping and engagement. This combination delivers superior durability and reliable power transfer, making it suitable for aggressive street use or racing applications.

Designed specifically for the 1987 Toyota 4Runner, this clutch kit is a direct replacement for stock components, ensuring proper fitment and performance. It is ideal for drivers seeking increased holding capacity and durability under high-stress conditions. The kit includes all necessary components for installation, providing a comprehensive upgrade for enhanced clutch performance. Suitable for use in street, off-road, or racing environments, this clutch assembly offers a robust solution for demanding drivers looking to maximize their vehicle’s capabilities.

Overview

ACT XT/Race Sprung 6 Pad Kit

TS1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 17
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.07
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1984-1987 Toyota Cressida
  • 1986-1988 Toyota Supra
  • 1982-1985 Toyota Celica
  • 1985-1987 Toyota Pickup
  • 1985-1987 Toyota 4Runner

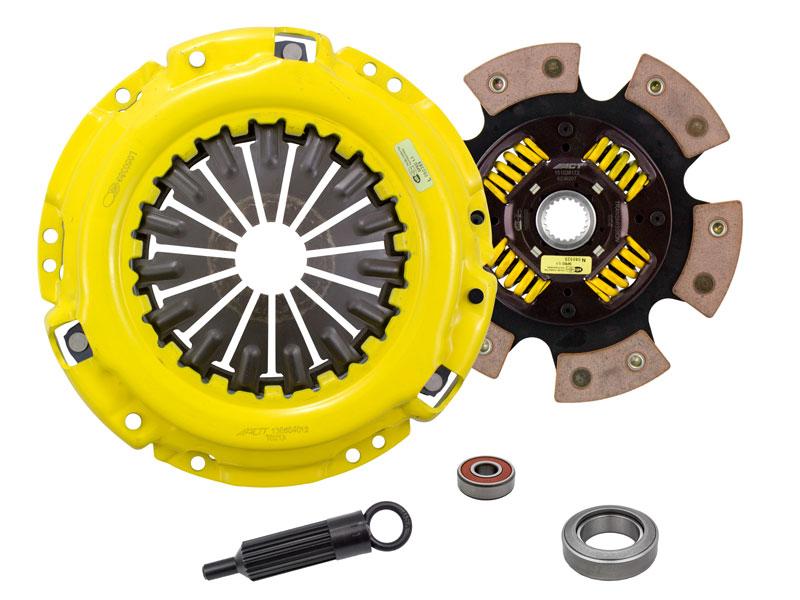

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T021X)

References

Warranty

  • Manufacturer 1 Year Warranty
