ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Camry (1988) (TY3-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Camry (1988) (TY3-XTG6)

TY3-XTG6

In stock

$690.00 USD
$852.00 USD $690.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Toyota Camry (1988) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate utilizes an exclusive diaphragm design that enhances durability and performance under intense use. The clutch disc incorporates a 6-pad spring-centered race disc with spring-center construction, providing effective damping and consistent engagement. All components undergo a four-stage heat treatment process, ensuring superior strength and heat resistance. Precision cover stampings contribute to the rigidity and uniformity of the assembly, making it suitable for aggressive driving and racing applications.

This clutch kit is specifically designed for the 1988 Toyota Camry, offering a direct replacement for stock components. It is ideal for high-performance street driving, track use, or racing scenarios where maximum holding capacity and durability are required. The assembly is a bolt-on upgrade that does not require modifications for installation. The kit includes the pressure plate, clutch disc, and necessary hardware for a complete installation. Suitable for vehicles with similar specifications, this clutch kit enhances power transfer and pedal feel, making it a reliable choice for enthusiasts seeking increased performance and longevity from their clutch system.

Overview

ACT XT/Race Sprung 6 Pad Kit

TY3-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 14.8

Applications

  • 1988-1991 Toyota Camry
  • 1996-2000 Toyota RAV4
  • 1988-1989 Toyota Celica
  • 1990-1991 Lexus ES250

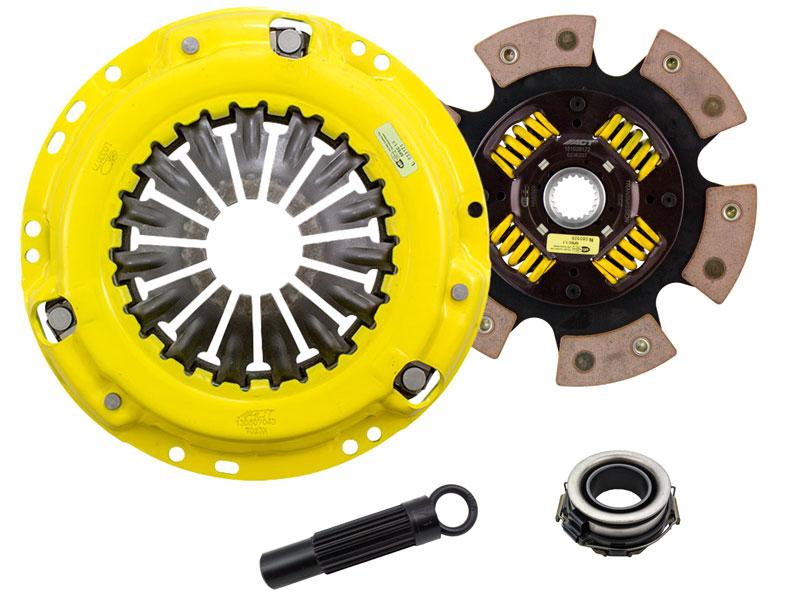

What's In The Box?

  • Clutch Pressure Plate (T023X)
  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB219)

References

Warranty

  • Manufacturer 1 Year Warranty
