ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Camry 2002 (TY4-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Camry 2002 (TY4-XTG6)

TY4-XTG6

In stock

$690.00 USD
$852.00 USD $690.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Toyota Camry 2002 (TY4-XTG6) is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under extreme stress. The kit includes a 6-pad spring-centered race disc with spring-center construction, providing optimal damping and engagement characteristics. Built with precision cover stampings, this clutch kit delivers increased rigidity and reliability, making it suitable for high-performance applications and aggressive driving.

Designed specifically for the 2002 Toyota Camry equipped with the TY4 chassis code, this clutch kit is intended for street and track use where maximum holding capacity and durability are required. It serves as a direct replacement for the stock clutch, offering enhanced clamping force and longevity. The assembly is a bolt-on upgrade that requires no additional modifications for installation. This kit is ideal for drivers seeking improved performance, especially in racing or spirited driving scenarios, and includes all necessary components for a complete upgrade. Properly matched to the vehicle's specifications, it ensures reliable operation and consistent power transfer.

Overview

ACT XT/Race Sprung 6 Pad Kit

TY4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.8
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1992-1993 Lexus ES300
  • 1992-2002 Toyota Camry
  • 1999-2002 Toyota Solara

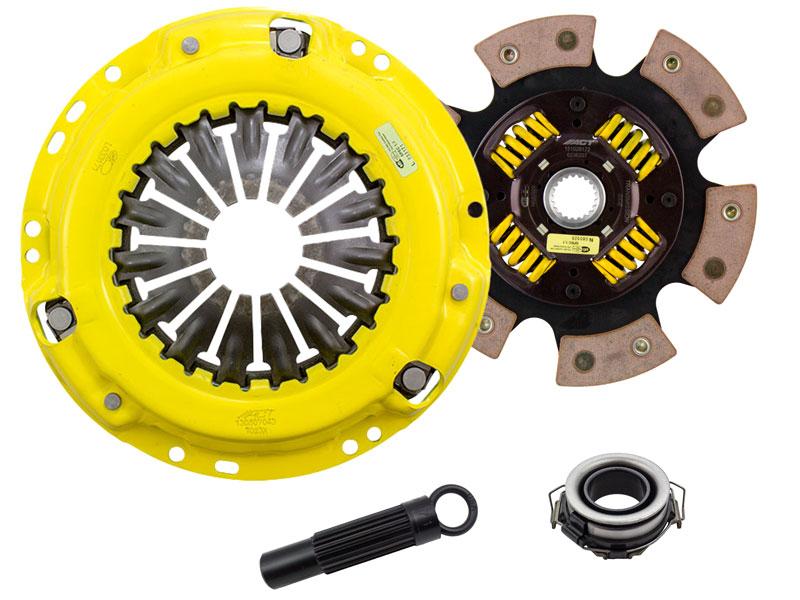

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023X)

References

Warranty

  • Manufacturer 1 Year Warranty
