• ACT Extreme Race Sprung 6 Pad Clutch Kit | Kia Sportage (95) (Z61-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Kia Sportage (95) (Z61-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Kia Sportage (95) (Z61-XTG6)

Z61-XTG6

Out of stock

$853.00 USD
$853.00 USD $853.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Kia Sportage (95) (Z61-XTG6) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and enhanced durability. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure superior performance and longevity. The precision cover stampings provide added rigidity and consistency, while the 6-pad spring-centered race disc offers optimal damping and engagement characteristics. This combination results in a clutch system capable of handling high torque loads and aggressive driving styles, making it ideal for racing or spirited street use.

Designed specifically for the 1995 Kia Sportage equipped with compatible engine configurations, this clutch kit serves as a direct replacement for stock components. It is suitable for applications requiring increased clamping force and durability, such as track days or high-performance street driving. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Its sprung design helps absorb shock and vibration, providing smoother engagement and improved drivability. This clutch kit is perfect for enthusiasts seeking a reliable, race-ready upgrade that maximizes performance and clutch life under demanding conditions.

Overview

ACT XT/Race Sprung 6 Pad Kit

Z61-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.4
  • Torque Capacity (ft/lbs.): 470
  • Torque Capacity Over OE: 1.56
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1988-1992 Mazda 626
  • 1989-1992 Ford Probe
  • 1988-1992 Mazda MX-6
  • 1995-2002 Kia Sportage
  • 1988-1989 Mazda 323

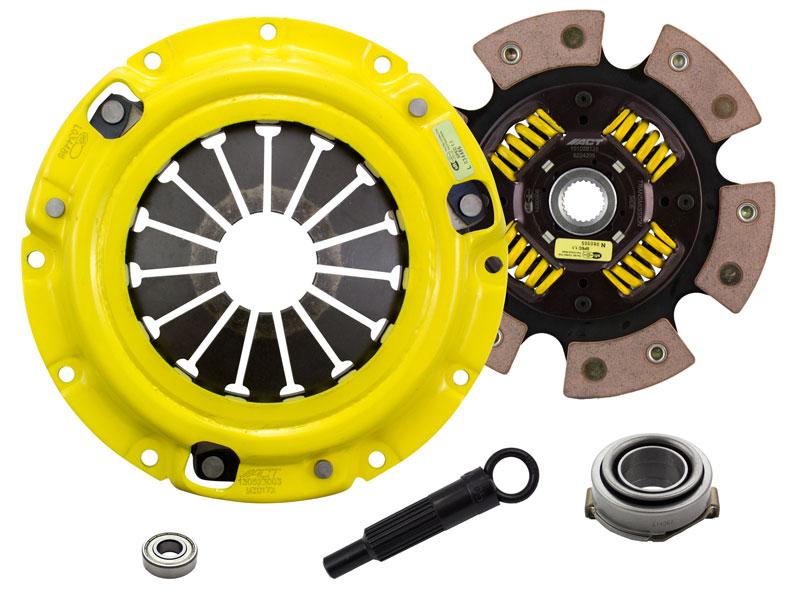

What's In The Box?

  • Clutch Friction Disc (6224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ017X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
