ACT Extreme Race Sprung 6 Pad Clutch Kit | Mazda 929 1988 (Z64-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Mazda 929 1988 (Z64-XTG6)

Z64-XTG6

Out of stock

$630.00 USD
$778.00 USD $630.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Mazda 929 1988 (Z64-XTG6) is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate with an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The kit includes a 6-pad spring-centered race disc with spring-center construction, providing effective damping and smooth engagement. Built with precision cover stampings, this clutch kit delivers increased rigidity and reliability, making it ideal for racing or high-stress applications.

This clutch kit is specifically engineered for the Mazda 929 models from 1988, equipped with compatible engine configurations. It serves as a direct replacement or upgrade for stock clutch components, offering improved holding capacity and heat resistance. Designed for track use, high-performance street driving, or racing scenarios, the kit ensures maximum power transfer and durability. Installation involves bolt-on replacement of existing clutch parts, with all necessary components included. Suitable for drivers seeking enhanced performance and longevity in demanding driving environments, this ACT clutch kit provides a robust solution for serious enthusiasts.

Overview

ACT XT/Race Sprung 6 Pad Kit

Z64-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 16.5
  • Torque Capacity (ft/lbs.): 560
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1988-1991 Mazda 929
  • 1988-1991 Mazda 626
  • 1988-1992 Mazda MX-6
  • 1989-1992 Ford Probe

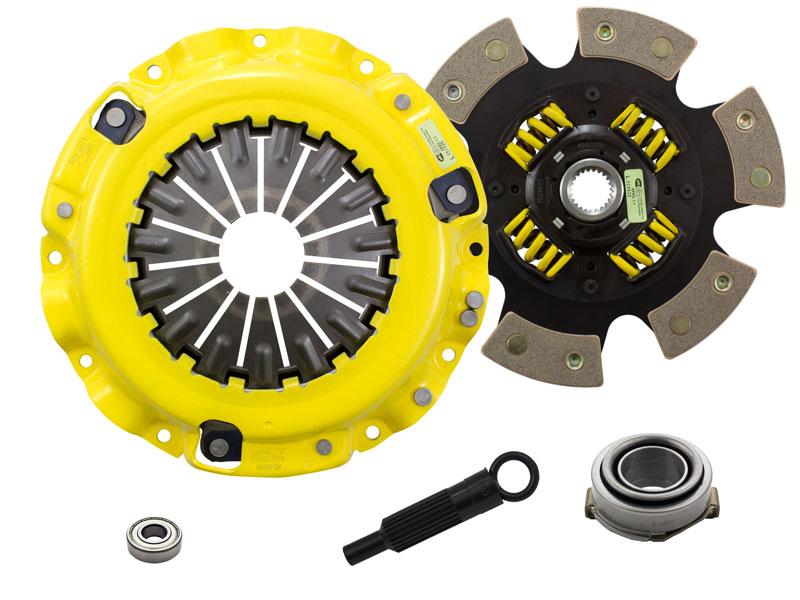

What's In The Box?

  • Clutch Friction Disc (6240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
