• ACT Extreme Race Sprung 6 Pad Clutch Kit | Mazda Protege XT/Race (01) (Z66-XTG6)
1 1

ACT Extreme Race Sprung 6 Pad Clutch Kit | Mazda Protege XT/Race (01) (Z66-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Mazda Protege XT/Race (01) (Z66-XTG6)

Z66-XTG6

In stock

$700.00 USD
$864.00 USD $700.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Mazda Protege XT (01) features a high-performance clutch assembly designed for demanding driving conditions. This kit includes an Xtreme pressure plate that employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The clutch disc features a 6-pad spring-centered design, which effectively damps torsional vibrations and enhances stability during aggressive driving. Constructed with precision cover stampings, this clutch kit delivers increased rigidity and reliability, making it suitable for high-stress applications.

Designed specifically for 2001 Mazda Protege XT models, this clutch kit is a direct replacement for stock components and is ideal for racing, track days, or high-performance street use. It is engineered to handle increased power and torque, providing improved engagement and durability. The kit is a bolt-on upgrade that requires no modifications for installation, making it suitable for enthusiasts seeking a reliable, high-performance clutch solution. Compatible with the Z66-XTG6 part number, it ensures optimal fitment and performance for vehicles with similar specifications. This clutch kit is perfect for drivers demanding maximum performance and longevity from their clutch system.

Overview

ACT XT/Race Sprung 6 Pad Kit

Z66-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.2
  • Torque Capacity (ft/lbs.): 430
  • Torque Capacity Over OE: 1.29
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 2001-2003 Mazda Protege
  • 1993-1997 Mazda MX-6
  • 2002-2003 Mazda Protege5
  • 1993-1997 Ford Probe
  • 1993-2002 Mazda 626

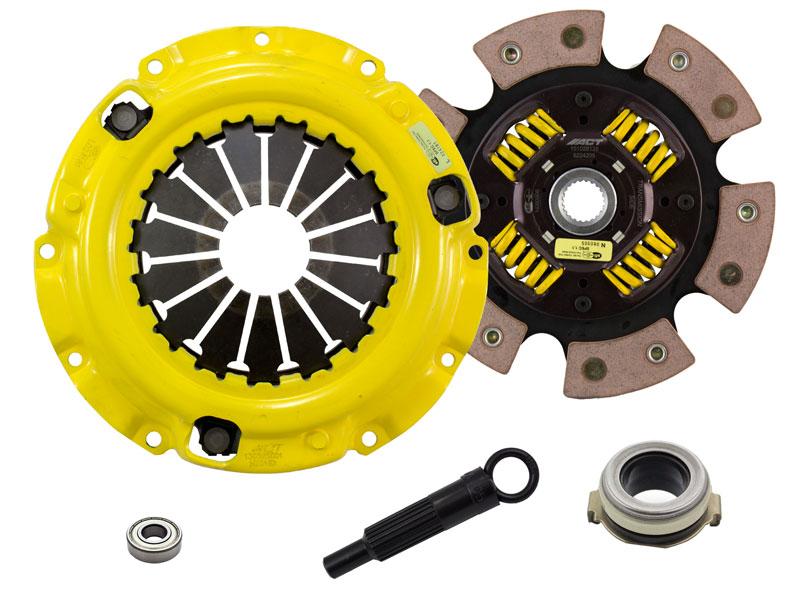

What's In The Box?

  • Clutch Friction Disc (6224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ018X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB110)

References

Warranty

  • Manufacturer 1 Year Warranty
