• ACT Extreme Race Sprung 4 Pad Clutch Kit | Mitsubishi Evo 8/9 (03-06) (ME2-XTG4)
1 1

ACT Extreme Race Sprung 4 Pad Clutch Kit | Mitsubishi Evo 8/9 (03-06) (ME2-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Mitsubishi Evo 8/9 (03-06) (ME2-XTG4)

ME2-XTG4

In stock

$885.00 USD
$1,092.00 USD $885.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

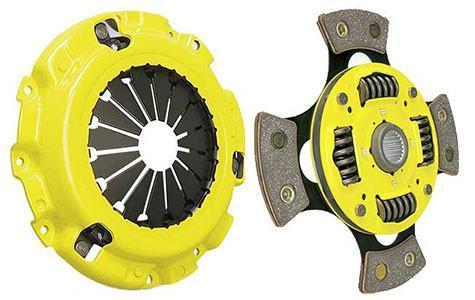

The ACT Extreme Race Sprung 4 Pad Clutch Kit for Mitsubishi Evo 8/9 (03-06) is a high-performance clutch assembly designed for demanding driving conditions. This kit includes an Xtreme pressure plate featuring an exclusive diaphragm design that enhances clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat treatment process to ensure durability and consistent performance under extreme conditions. The 4-pad spring-centered race disc provides superior engagement and power transfer, making it ideal for aggressive street and track use. Constructed with precision stampings, the pressure plate offers increased rigidity and reliability, while the sprung disc absorbs shock for smoother operation during high-stress driving.

Designed specifically for 2003-2006 Mitsubishi Evo 8 and 9 models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for vehicles with modified or stock engines used in racing, spirited driving, or demanding daily applications. The kit is a bolt-on installation, providing a straightforward upgrade path without the need for additional modifications. It includes all necessary components for installation, ensuring optimal performance and longevity. This clutch kit is ideal for drivers seeking maximum clamping force, durability, and consistent power delivery in high-performance Mitsubishi Evo applications.

Overview

2003-2006 Mitsubishi Evo 8/9 Xtreme 4 Puck Sprung Disc Clutch Kit by ACT

ME2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Features

  • Product Weight (lbs.): 16.5
  • Torque Capacity (ft/lbs.): 787
  • Torque Capacity Over OE: 115%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 9.4
  • Clutch Disc Diameter (Millimeters): 240
  • Input Shaft Diameter (inches): 1
  • Pressure Plate Type: Xtreme

Benefits

  • Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc

Applications

  • 2003-2006 Mitsubishi Evo 8/9

What's In The Box?

  • 1 - Xtreme 4 Puck Sprung Disc Clutch Kit

Warranty

  • ACT's Standard 1-Year Limited Warranty
