ACT Extreme Race Rigid 4 Pad Disc | Eclipse GSX/Talon TSi/3000GT (90-99) (MB1-XTR4)

ACT Extreme Race Rigid 4 Pad Disc | Eclipse GSX/Talon TSi/3000GT (90-99) (MB1-XTR4)

MB1-XTR4

In stock

$535.00 USD
$661.00 USD $535.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Disc is a high-performance clutch component designed for demanding driving conditions. Compatible with 1990-1999 Mitsubishi Eclipse GSX, Eagle Talon TSi, Plymouth Laser RS, and 1991-1999 Mitsubishi 3000GT and Dodge Stealth models, this disc features a four-puck solid hub design that enhances grip and durability. Constructed with premium materials and engineered for maximum heat resistance, it delivers superior clamp load and reduced deflection, making it ideal for aggressive street and track use. The kit incorporates an Xtreme pressure plate that undergoes a four-stage heat treatment process, ensuring long-lasting performance and reliable engagement under high-stress conditions.

This clutch kit is a direct replacement for stock components on compatible Mitsubishi and Dodge models, providing a significant upgrade for performance enthusiasts. It is suitable for vehicles equipped with turbocharged engines and is intended for high-performance applications such as racing or spirited driving. The kit includes the four-puck disc and pressure plate, designed for bolt-on installation with no additional modifications required. Perfect for those seeking increased clamping force, improved heat dissipation, and extended clutch life, this ACT clutch kit enhances overall drivetrain performance for street and track use.

Overview

1990-1999 Mitsubishi Eclipse GSX/Eagle Talon TSi/Plymouth Laser RS, and 1991-1999 Mitsubishi 3000GT/Dodge Stealth Xtreme Pressure Plate / 4 puck Solid Hub Disc Clutch Kit by ACT

MB1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high-quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.7
  • Torque Capacity (ft/lbs.): 530
  • Torque Capacity Over OE: 109%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 8.8
  • Clutch Disc Diameter (Millimeters): 224
  • Input Shaft Diameter (inches): 0.875
  • Pressure Plate Type: Xtreme

Benefits

  • Feel: Moderate to the heavy pedal effort, aggressive engagement, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1991-1996 Dodge Stealth Base, ES, R/T
  • 1990-1994 Plymouth Laser RS
  • 1990-1998 Eagle Talon TSi
  • 1991-1999 Mitsubishi 3000GT Base & SL
  • 1990-2005 Mitsubishi Eclipse GSX, GST, GS Spyder, & GST Spyder
  • 1991-1999 Mitsubishi Galant VR-4

What's In The Box?

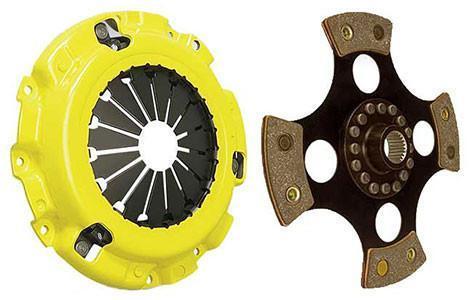

  • 1 - Xtreme Pressure Plate / 4 puck Solid Hub Disc Clutch Kit

Warranty

  • ACT's Standard 1-Year Limited Warranty
