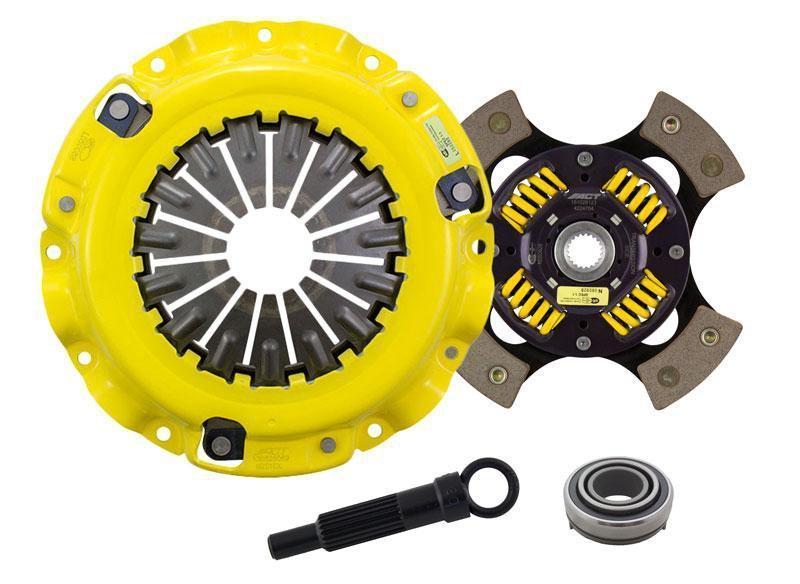

ACT Extreme Race 4 Pad Clutch Kit | Mitsubishi Eclipse GSX/Eagle Talon TSi/3000GT (90-99) (MB1-XTG4)

ACT Extreme Race 4 Pad Clutch Kit | Mitsubishi Eclipse GSX/Eagle Talon TSi/3000GT (90-99) (MB1-XTG4)

MB1-XTG4

In stock

$590.00 USD
$729.00 USD $590.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race 4 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Specifically engineered for the Mitsubishi Eclipse GSX, Eagle Talon TSi, and 3000GT models from 1990 to 1999, this kit features an Xtreme pressure plate combined with a four-puck sprung disc. The pressure plate employs an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch durability. All components undergo a rigorous four-stage heat-treating process, ensuring maximum performance and longevity under extreme conditions. This clutch kit is ideal for high-horsepower applications, track use, or aggressive street driving, providing reliable engagement and consistent power transfer.

The kit is compatible with 1990-1999 Mitsubishi Eclipse GSX, Eagle Talon TSi, and 1991-1999 Mitsubishi 3000GT/Dodge Stealth models. It is a direct replacement for stock clutch components, offering a significant upgrade in clamping force and heat resistance. Designed for performance enthusiasts, this clutch kit supports increased torque capacity and improved pedal feel. Installation involves standard bolt-on procedures, making it suitable for both street and track use. The kit includes the pressure plate, four-puck sprung disc, and necessary hardware, providing a comprehensive upgrade for high-performance driving applications.

Overview

1990-1999 Mitsubishi Eclipse GSX/Eagle Talon TSi/Plymouth Laser RS, and 1991-1999 Mitsubishi 3000GT/Dodge Stealth Xtreme Pressure Plate / 4 Puck Sprung Disc Clutch Kit by ACT

MB1-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.1
  • Torque Capacity (ft/lbs.): 530
  • Torque Capacity Over OE: 109%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 8.8
  • Clutch Disc Diameter (Millimeters): 224
  • Input Shaft Diameter (inches): 0.875
  • Pressure Plate Type: Xtreme

Benefits

  • Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1991-1996 Dodge Stealth Base, ES, R/T
  • 1990-1994 Plymouth Laser RS
  • 1990-1998 Eagle Talon TSi
  • 1991-1999 Mitsubishi 3000GT Base & SL
  • 1990-2005 Mitsubishi Eclipse GSX, GST, GS Spyder, & GST Spyder
  • 1991-1999 Mitsubishi Galant VR-4

What's In The Box?

  • 1 - Xtreme Pressure Plate / 4 Puck Sprung Disc Clutch Kit

Warranty

  • ACT's Standard 1-Year Limited Warranty
