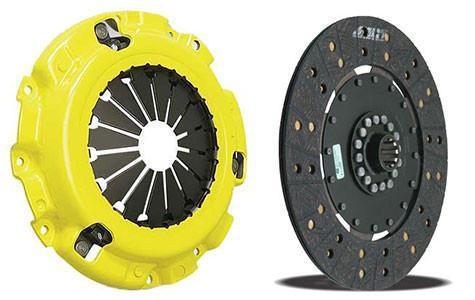

ACT Xtreme Pressure Plate / Street Solid Disc Clutch Kit | 1990-1999 1G/2G DSM (MB1-XTSD)

Advanced Clutch XT/Perf Street Rigid Clutch Kit - MB1-XTSD

MB1-XTSD kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability.

Features

• Friction Surface Diameter (Inches) 8.8
• Input Shaft Diameter (Inches) 7/8
• Friction Surface Diameter (mm) 224
• Item Description XT/Perf Street Rigid
• Product Weight (lbs.) 10.8
• Disc Type Rigid Street Disc
• Pressure Plate Type Xtreme
• Torque Capacity Over OE 64%
• Torque Capacity (ft/lbs.) 415
• Spline Count 20

Benefits

• Feel: Moderate to heavy pedal effort, smooth positive engagement, increased gear rattle
• Life: Longer clutch life achieved through ACT's exclusive diaphragm design, rigid design may increase spline wear
• Quality: Precisely balanced and uses premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces
• Recommended Use: Recommended for street and race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 1991-1996 Dodge Stealth Base, ES, R/T
• 1990-1994 Plymouth Laser RS
• 1990-1998 Eagle Talon TSi
• 1991-1999 Mitsubishi 3000GT Base & SL
• 1990-2005 Mitsubishi Eclipse GSX, GST, GS Spyder, & GST Spyder
• 1991-1999 Mitsubishi Galant VR-4

What's In The Box?

• Perf Street Rigid Disc - 3000310
• P/PL Xtreme - MB010X
• Alignment Tool - AT20
• Release Bearing - RB210

References

• Installation Manual

Warranty

• Manufacturer 12 Month Warranty
